FL MGUARD GT/GT | 2700197 | Router Firewall
Security appliance, 10/100/1000 Mbps, NAT, advanced firewall, SFP combo ports, functionally extendable with licenses
| Complete Electronics Part No. | 2700197 |
|---|---|
| Manufacturers Part No. | 2700197 |
| Ethernet Product Type: | Firewall / Router |
| Total 1000 Base (SX) Ports: | 2 |
| Number of Combo Ports: | 2 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description

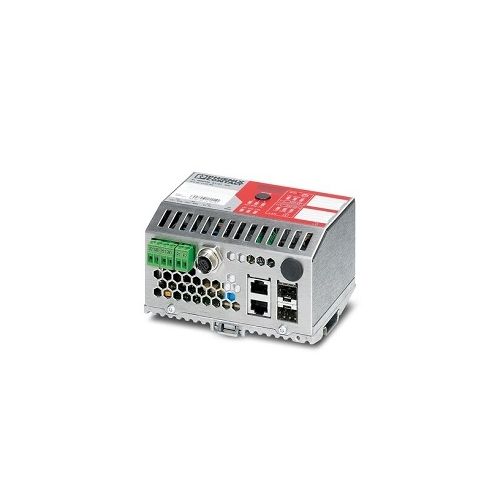

Security router for DIN rail
FL MGUARD... security appliance
Security router for DIN rail
- 2 x Combo Ports either SFP or RJ45
- Transmission Speed: 10/100/1000 Mbps, (SFP module: 100/1000 Mbps)
- Fibre Optic Interface: 2 x SFP Ports 1000Mbps (Full Duplex)
- 1 x RS-232-C, 6-pos. MINI-DIN socket (PS/2)
- Supply Voltage: 24 V DC (redundant)
- Supply Voltage range: 18 V DC....32 V DC
- Signal LED's: Supply voltage, data transmission, error, link, activity
- Power supply connection: Via COMBICON, max. conductor cross section 2.5 mm²
- Typical current consumption: 270 mA (at US = 24 V DC)
- Signal contact control voltage: 24 V DC (typical)
- Operating Temperature: -20 °C ... 60 °C
- Width: 128mm
- Height: 110mm
- Depth: 69mm
- Mounting Type: DIN Rail
- Housing material: Metal
- Colour: Grey
- Weight per Piece (excluding packing): 660 g
- Part Number 2700197
- Customs tariff number: 85176200
- Country of origin: DE
