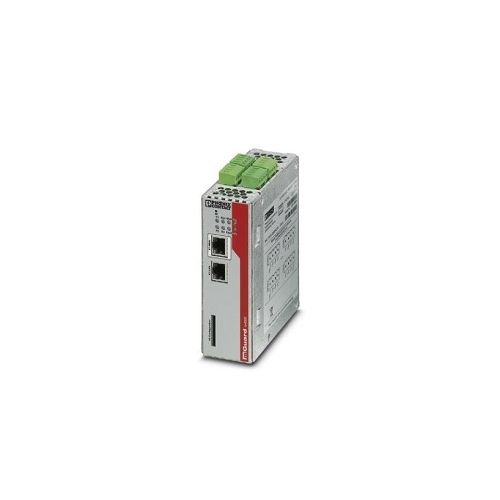

FL MGUARD RS2000 TX/TX-B | 2702139 | Router

Router, 10/100 Mbps, NAT, Central management tool, Maximum performance, Maximum security
More Information
Complete Electronics Part No 2702139
Manufacturers Part No. 2702139
Ethernet Product Type Router
Total 10/100 (RJ45) Ports 2
IP Rating IP20
Description

FL MGUARD...Security router / firewall

  • 2 x 10/100 Mbps Ethernet ports (RJ45)
  • Central management tool
  • Supply Voltage: 24 V DC
  • Supply Voltage range: 11 V DC....36 V DC
  • Signal LED's: Supply voltage, data transmission, error, link, activity
  • Power supply connection: Via COMBICON, max. conductor cross section 2.5 mm²
  • Typical current consumption: 100 mA (at US = 24 V DC)
  • Signal contact control voltage: 24 V DC (typical)
  • Operating Temperature: -20 °C ... 60 °C
  • Width: 45mm
  • Height: 130mm
  • Depth: 114mm
  • Mounting Type: DIN Rail
  • Housing material: Metal
  • Colour: Silver
  • Weight per Piece (excluding packing): 725 g
  • Part Number 2702139
  • Customs tariff number: 85176200
  • Country of origin: DE
