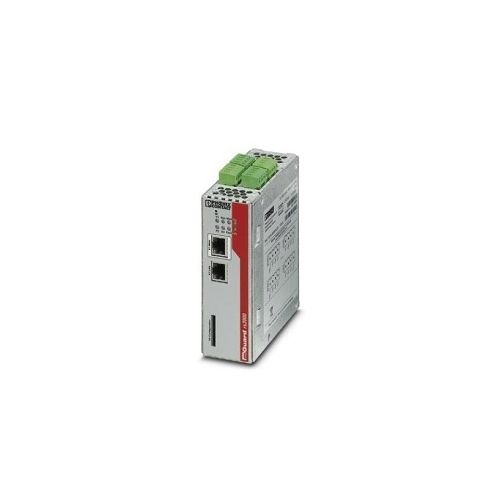

FL MGUARD RS2000 TX/TX VPN | 2700642 | Router
Remote maintenance router, 10/100 Mbps, NAT, VPN, firewall, Signal LEDs:- Supply voltage, data transmission, error, link, activity
| Complete Electronics Part No. | 2700642 |
|---|---|
| Manufacturers Part No. | 2700642 |
| Ethernet Product Type: | Firewall / Router |
| Total 10/100 (RJ45) Ports: | 2 |
| IP Rating: | IP20 |
Description
Security router for DIN rail
Remote Maintenance Router
Security router for DIN rail
- 2 x 10/100 Mbps Ethernet ports (RJ45)
- Standard routing, NAT, 1:1-NAT, port forwarding
- Number of VPN Tunnels: 2 (Fixed, Ipsec (IETF standard))
- Signal contact connection method: Plug-in/screw connection via COMBICON
- Supply Voltage: 24 V DC
- Supply Voltage Range: 11 V DC...36 V DC
- Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
- Typical Current Consumption: 100 mA (at US = 24 V DC)
- Signal contact control voltage: 24 V DC (Typical)
- Degree of protection: IP20
- Operating Temperature: -20°C ... 60°C
- Width: 45mm
- Height: 130mm
- Depth: 114mm
- Mounting Type: DIN Rail
- Housing material: Metal
- Colour: Silver
- Weight per Piece (excluding packing): 725 g
- Part Number 2700642
- Customs tariff number: 85176200
- Country of origin: DE
