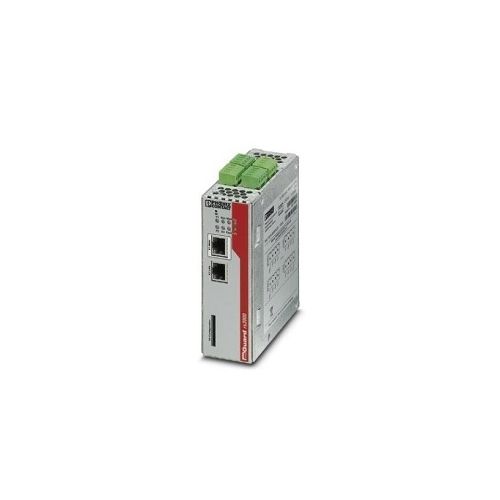

FL MGUARD RS4000 TX/TX | 2700634 | Router
Security appliance, 10/100 Mbps, NAT, advanced firewall, VPN, functionally extendable with licenses
| Complete Electronics Part No. | 2700634 |
|---|---|
| Manufacturers Part No. | 2700634 |
| Ethernet Product Type: | Firewall / Router |
| Total 10/100 (RJ45) Ports: | 2 |
| IP Rating: | IP20 |
Description
Remote Maintenance Router
Security appliance Router
2 x 10/100 Mbps Ethernet ports (RJ45)
Signal LEDs: Supply voltage, data transmission, error, link, activity
Signal contact connection method: Plug-in/screw connection via COMBICON
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 11 V DC...36 V DC
Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
Typical Current Consumption: 100 mA (at US = 24 V DC)
Signal contact control voltage: 24 V DC (Typical)
Degree of protection: IP20
Operating Temperature: -20°C ... 60°C
Width: 45mm
Height: 130mm
Depth: 114mm
Mounting Type: DIN Rail
Housing material: Metal
Colour: Silver
Weight per Piece (excluding packing): 725 g
Part Number 2700634
Customs tariff number: 85176200
Country of origin: DE
