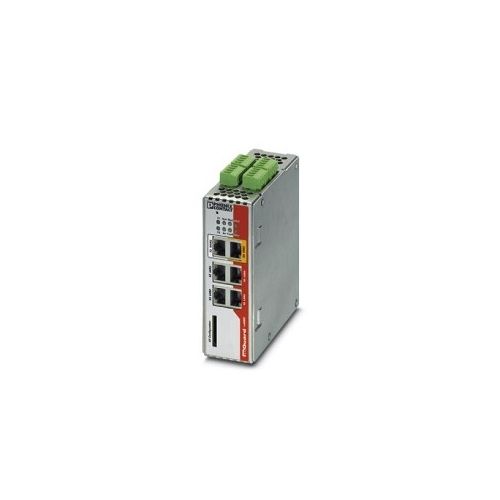

FL MGUARD RS4004 TX/DTX | 2701876 | Router
Security appliance, 10/100 Mbps, NAT, firewall, managed 6-port switch and DMZ, functionally extendable with licenses
| Complete Electronics Part No. | 2701876 |
|---|---|
| Manufacturers Part No. | 2701876 |
| Ethernet Product Type: | Firewall / Router |
| Total 10/100 (RJ45) Ports: | 6 |
| IP Rating: | IP20 |
Description
Security router for DIN rail
FL MGUARD... security Router
Security router for DIN rail
6 x 10/100 Mbps Ethernet ports (RJ45)
High-speed cellular interface with provider redundancy
Integrated 6-port managed switch
Supply Voltage: 24 V DC (redundant)
Supply Voltage range: 11 V DC....36 V DC
Power supply connection: Via COMBICON, max. conductor cross section 2.5 mm²
Typical current consumption: 100 mA (at US = 24 V DC)
Signal contact control voltage: 24 V DC (typical)
Operating Temperature: -20 °C ... 60 °C
Width: 45mm
Height: 130mm
Depth: 114mm
Mounting Type: DIN Rail
Housing material: Metal
Colour: Silver
Weight per Piece (excluding packing): 902 g
Part Number 2701876
Customs tariff number: 85176200
Country of origin: DE
