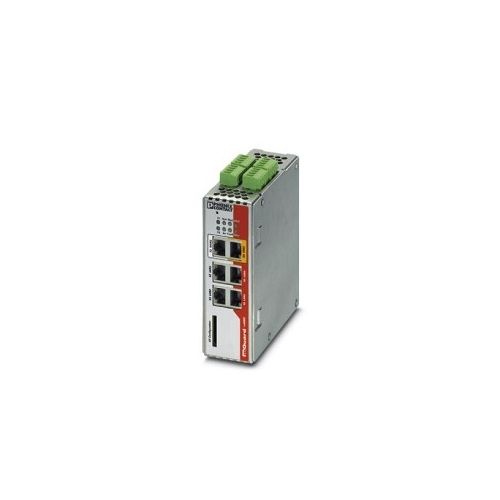

FL MGUARD RS4005 TX/DTX VPN | 2701877 | Router
Security appliance, 10/100 Mbps, NAT, VPN, firewall, managed 4-port switch and DMZ, functionally extendable with licenses
| Complete Electronics Part No. | 2701877 |
|---|---|
| Manufacturers Part No. | 2701877 |
| Ethernet Product Type: | Firewall / Router |
| Total 10/100 (RJ45) Ports: | 6 |
| IP Rating: | IP20 |
Description
FL MGUARD...Security router for DIN rail
- 6 x 10/100 Mbps Ethernet ports (RJ45)
- Integrated 6-port managed switch
- Supply Voltage: 24 V DC (redundant)
- Supply Voltage range: 11 V DC....36 V DC
- Signal LED's: Supply voltage, data transmission, error, link, activity
- Power supply connection: Via COMBICON, max. conductor cross section 2.5 mm²
- Typical current consumption: 100 mA (at US = 24 V DC)
- Signal contact control voltage: 24 V DC (typical)
- Operating Temperature: -20 °C ... 60 °C
- Width: 45mm
- Height: 130mm
- Depth: 114mm
- Mounting Type: DIN Rail
- Housing material: Metal
- Colour: Silver
- Weight per Piece (excluding packing): 902 g
- Part Number 2701877
- Customs tariff number: 85176200
- Country of origin: DE
