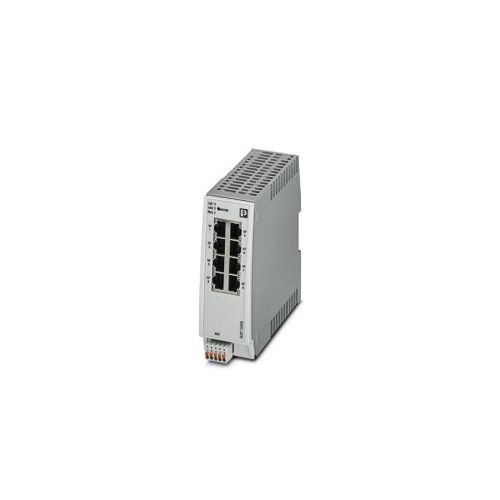

FL NAT 2008 | 2702881 | NAT Ethernet Switch
Managed Ethernet switch NAT, 8 x RJ45 10/100 Ports, PROFINET Conformance-Class A, Auto negotiation and autocrossing
| Complete Electronics Part No. | 2702881 |
|---|---|
| Manufacturers Part No. | 2702881 |
| Phoenix Ethernet Series: | Managed NAT Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP20 |
Description
Managed NAT Ethernet switch
8 x RJ45 ports 10/100 Mbps
Auto negotiation and autocrossing (RJ45 Interface)
Transmission Length: 100 m (per segment)
Signal LED's: Data receive, link status
PROFINET Conformance-Class A
1:1-NAT
Virtual NAT
IP-Masquerading
Supply Voltage: 24 V DC (Single)
Supply Voltage Range: 18 V DC....32 V DC
Connection Method: Screw Connection
Typical Current Consumption: 185 mA (at US = 24 V DC and 25 °C ambient temperature)
Power Supply Connection Method:via COMBICON, max. conductor cross section 1.5 mm²
Degree of protection: IP20
Operating Temperature: -0°C ... 60°C
Width: 45 mm
Height: 130 mm
Depth: 115 mm
Mounting Type: DIN Rail
Housing: Polycarbonate fiber reinforced
Weight per Piece (excluding packing): 393 g
Part Number 2702881
GTIN: 4055626376622
Customs tariff number: 85176200
Country of origin: DE
