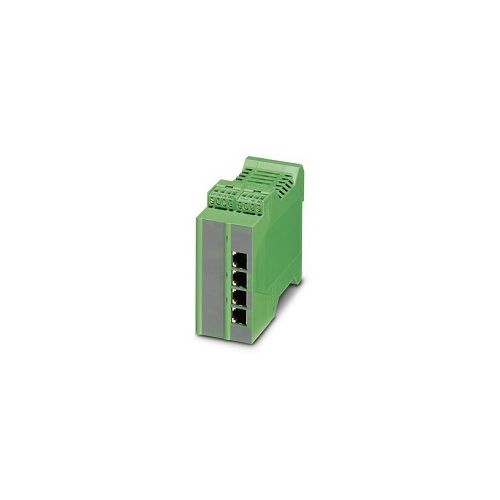

FL PSE 2TX | 2891013 | Ethernet Module
Factoryline Power-over-Ethernet modules (PSE) for midspan power supply according to IEEE 802.3af, two PoE supply ports, no configuration required
| Complete Electronics Part No. | 2891013 |
|---|---|
| Manufacturers Part No. | 2891013 |
| Ethernet Product Type: | POE Injector |
Description
Ethernet module - FL PSE 2TX
- Factoryline Power-over-Ethernet modules
- 10/100 Mbps
- Connection: 4 x RJ45 f which 2 are PoE
- 24 V DC (via COMBICON; max. conductor cross section 2.5 mm²)
- Supply voltage range: 18.5 V DC ... 30.5 V DC
- Typical current consumption (No Load): 100mA
- Typical current consumption (Max Load):1800mA at 24 V DC
- Width: 45 mm
- Height: 99 mm
- Depth: 112 mm
- Colour: Green
- Housing Material: Polyamide (PA 6.6)
- Ingress Protection: IP20
- Operating Temperature: -0°C ... 55°C
- LED Signaling: US, PoE detection per port
- DIN rail mounting
- Weight per Piece (excluding packing): 320 g
- Part Number: 2891013
- Customs tariff number: 85176200
- Country of origin: DE
