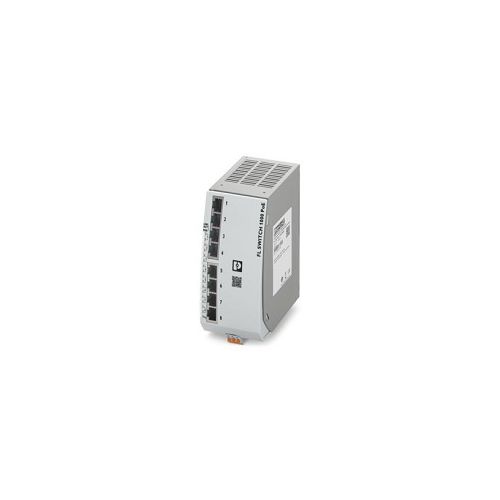

FL SWITCH 1000-8POE | 1342622 | Ethernet Switch

PoE+ Ethernet switch conforms to IEEE 802.3af/at/bt, includes eight PoE RJ45 ports with 10/100 Mbps on all ports, automatic data transmission speed detection

More Information
Complete Electronics Part No. 1342622
Manufacturers Part No. 1342622
Phoenix Ethernet Series: Unmanged PoE Switch 1000
Managed / Unmanaged: Unmanaged
Total 10/100 (RJ45) Ports: 8
Number Of PoE Ports: 8
Total Ethernet Ports: 8
IP Rating: IP30
Description

FL SWITCH 1000-8POE

Unmanaged Ethernet Switch

Ethernet (RJ45)

Transmission speed: 10/100 Mbps
RJ45 jack x 8
Transmission length: 100 m (per segment)
Signal LED's:  Data receive, link status, PoE
Auto negotiation and Auto Crossing
PSE.complies with IEEE 802.3 af/at/bt

Ethernet (Optical)

N/A

Functions

Unmanaged switch
QoS-prioritized (Quality of Service) messages
PROFINET PTCP filter for reliable communication on PROFINET networks
PROFINET Conformance Class A for real-time data exchange
Automatic detection of IEEE 802.3at, 802.3af, or 802.3bt powered devices
Store and Forward switching mode
Supply voltage: 48 V DC
Supply voltage range:46 V DC ... 57 V DC
Power supply connection: via COMBICON, max. conductor cross section 1.5 mm²
Typical current consumption: 58 mA (at 55V DC, no load)
Degree of protection: IP30
Operating Temperature: -10°C ... 60°C
Approvals: CE compliant

Dimensions

Width: 65mm
Height: 141mm
Depth: 107mm
Housing Material: Polycarbonate fiber reinforced, Aluminum / steel sheet DC01
Mounting Type: DIN Rail

Commercial data

Weight (not including packing):
Part Number: 1342622
GTIN: 4063151652494
Customs Tariff Number: 85176200
Minimum Order Quantity: 1pc.
Country Of Origin:
