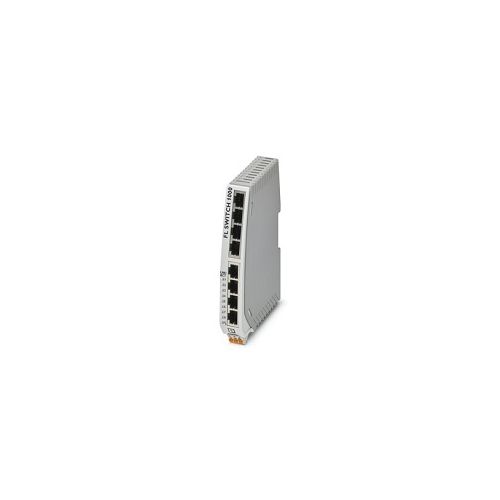

FL SWITCH 1008N | 1085256 | Ethernet Switch
Unmanaged switch, 8 x Twisted Pair (TP) RJ45, 10/100 Mbps, Housing:- Polycarbonate fiber reinforced, DIN Rail Mounting
| Complete Electronics Part No. | 1085256 |
|---|---|
| Manufacturers Part No. | 1085256 |
| Phoenix Ethernet Series: | Unmanged Switch 1000 |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP30 |
Description
Unmanaged Industrial Ethernet Switch
8 x Twisted Pair RJ45 Ports
- 8 x10/100 Mbps Ports
- Transmission length (RJ45):100 m (per segment)
- Auto Negotiation and Autocrossing
- Signal LEDs: Data receive, Link status
- Supply voltage: 24V DC / 24 V AC (50/60Hz)
- Supply voltage range: 9 V DC ... 32 V DC / 18 V AC....30V AC (50/60 Hz)
- Power supply connection Via COMBICON, max. conductor cross section 2.5 mm²
- Connection Method: Push-in spring connection
- Typical current consumption:28 mA
- Degree of protection: IP30
- Operating Temperature: -10 °C ... 60 °C
- Width: 22.5mm
- Height: 140.4mm
- Depth: 92.4mm
- Housing Material: Polycarbonate fibre reinforced
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 173 g
- Part Number 1085256
- GTIN: 4055626833590
- Customs tariff number: 85176200
- Country of origin: TW
