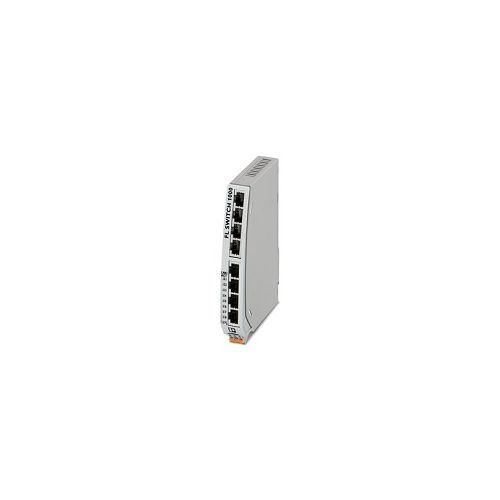

FL SWITCH 1008NT | 1085165 | Ethernet Switch
Narrow Ethernet switch, wide temperature range, eight RJ45 ports with 10/100 Mbps on all ports, automatic data transmission speed detection
| Complete Electronics Part No. | 1085165 |
|---|---|
| Manufacturers Part No. | 1085165 |
| Phoenix Ethernet Series: | Unmanged Switch 1000 |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP30 |
Description
FL SWITCH 1008NT
8 x Twisted Pair RJ45 Ports
- 8 x10/100 Mbps Ports
- PROFINET Conformance-Class A
- Transmission length:100 m (per segment)
- Auto Negotiation and Autocrossing
- Signal LEDs: Data receive, Link status
- Supply voltage: 24V DC
- Supply voltage range: 9 V DC ... 32 V DC
- Power supply connection Via COMBICON, max. conductor cross section 2.5 mm²
- Connection Method: Push-in spring connection
- Typical current consumption: 26 mA (at 24 V DC)
- Degree of protection: IP30
- Operating Temperature: -40°C ... 75°C
- Width: 22.5mm
- Height: 140.4mm
- Depth: 92.4mm
- Housing Material: Polycarbonate fibre reinforced
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 264 g
- Part Number 1085165
- GTIN: 4055626834900
- Customs tariff number: 85176200
- Country of origin: TW
