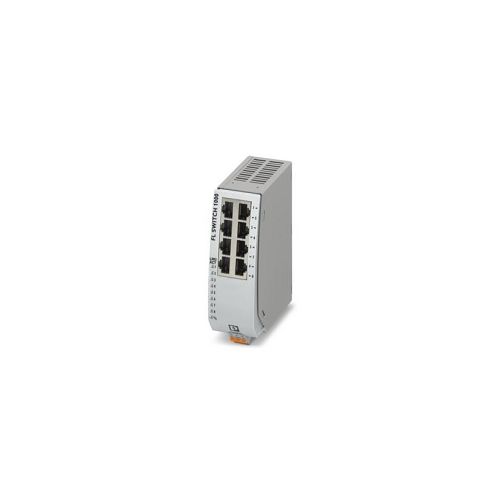

FL SWITCH 1008T | 1085094 | Ethernet Switch
Ethernet switch, wide temperature range, eight RJ45 ports with 10/100 Mbps on all ports, automatic data transmission speed detection
| Complete Electronics Part No. | 1085094 |
|---|---|
| Manufacturers Part No. | 1085094 |
| Phoenix Ethernet Series: | Unmanged Switch 1000 |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP30 |
Description
FL SWITCH 1008T
Unmanaged Ethernet Switch
Ethernet (RJ45 x 8)
Transmission speed: 10/100 Mbps
RJ45 jack x 8
Transmission length: 100 m (per segment)
Signal LED's: Data receive, link status
Auto negotiation
Store and Forward switching mode
PROFINET conformance class A
Ethernet (Optical)
N/A
Functions
Unmanaged switch
Supply voltage: 24V DC / 24 V AC (50/60 Hz)
Supply voltage range: 9 V DC ... 32 V DC, !8 V AC ...30 v AC (50/60 Hz)
Power supply connection: Via COMBICON, max. conductor cross section 2.5 mm²
Typical current consumption: 66 mA (at 24 V DC)
Degree of protection: IP30
Operating Temperature: -40°C ... 75°C
PROFINET conformance class A
Approvals: ATEX UL 23 ATEX 3070X, IECEx UL 23.0065X
Dimensions
Width: 40mm
Height: 125.4mm
Depth: 84mm
Housing Material: Polycarbonate fiber reinforced / Aluminum / steel sheet DC01
Mounting Type: DIN Rail
Commercial data
Weight per Piece (excluding packing): 259 g
Part Number: 1085094
GTIN: 4055626834443
Minimum Order Quantity: 1pc.
