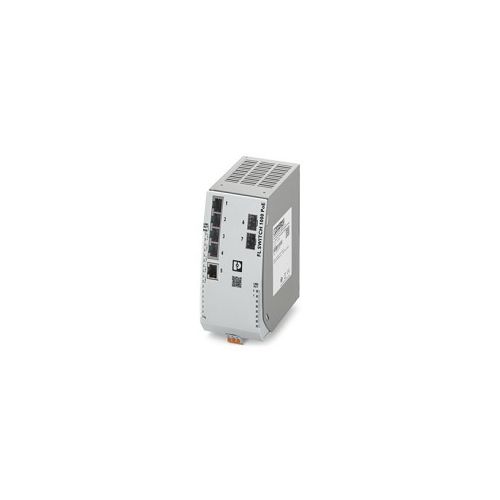

FL SWITCH 1100-5POE-2SFP | 1342621 | Ethernet Switch
PoE+ Ethernet switch conforms to IEEE 802.3af/at/bt, includes five PoE RJ45 ports with 10/100/1000 Mbps on all ports, two SFP ports
| Complete Electronics Part No. | 1342621 |
|---|---|
| Manufacturers Part No. | 1342621 |
| Phoenix Ethernet Series: | Unmanged PoE Switch 1000 |
| Managed / Unmanaged: | Unmanaged |
| Total 100/1000 (FX) Ports: | 2 |
| Total 10/100/1000 (RJ45) Ports: | 5 |
| Number Of PoE Ports | 5 |
| Total Ethernet Ports: | 7 |
| FX (Optical) Connector Type: | SFP |
| FX (Optical) Cable Type: | Multimode or Single Mode |
| IP Rating: | IP30 |
Description
FL SWITCH 1100-5POE-2SFP
Unmanaged Ethernet Switch
Ethernet (RJ45)
Transmission speed: 10/100/1000 Mbps
RJ45 jack x 5 (PoE)
Transmission length: 100 m (per segment)
Signal LED's: Data receive, link status, PoE
Auto negotiation and Auto Crossing
Store-and-forward switch, complies with IEEE 802.3 size
Ethernet (Optical)
Connection: 2 x SFP ports
Transmission speed 10/100/1000 Mbps (full duplex)
Auto negotiation and autocrossing
Transmission physics: Depending on the SFP module
Transmission length up to 40 km (Depending on the fiber/SFP module used)
Signal LEDs: Data receive, link status
Functions
Unmanaged switch
QoS-prioritized (Quality of Service) messages
PROFINET PTCP filter for reliable communication on PROFINET networks
PROFINET Conformance Class A for real-time data exchange
Automatic detection of IEEE 802.3at, 802.3af, or 802.3bt powered devices
Store and Forward switching mode
Supply voltage: 48 V DC
Supply voltage range:46 V DC ... 57 V DC (>52 V DC for PoE+ recommended)
Power supply connection: via COMBICON, max. conductor cross section 2.5 mm²
Typical current consumption: 57 mA (at 55V DC, no load)
Degree of protection: IP30
Operating Temperature: -10°C ... 60°C
Approvals: CE-compliant
Dimensions
Width: 65mm
Height: 141mm
Depth: 107mm
Housing Material: Polycarbonate fiber reinforced / Aluminum / steel sheet DC01
Mounting Type: DIN Rail
Commercial data
Weight (not including packing):
Part Number: 1342621
GTIN: 4063151652944
Customs Tariff Number: 85176200
Minimum Order Quantity: 1pc.
Country Of Origin:
