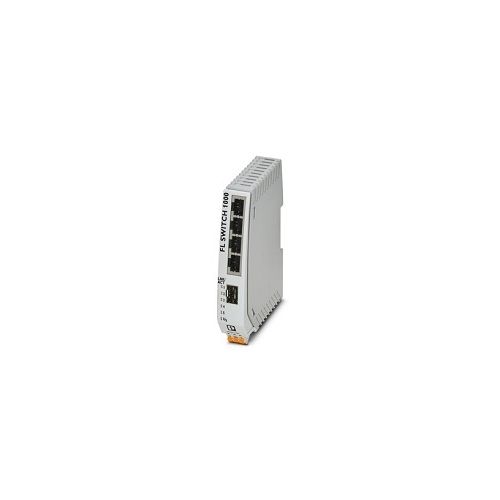

FL SWITCH 1104N-2SFP | 1085173 | Ethernet Switch
Unmanaged switch, 4 x Twisted Pair RJ45, 10/100/1000 Mbps, 2 x SFP ports 100/1000Mbps, Housing:- Polycarbonate fiber reinforced, DIN Rail Mounting
| Complete Electronics Part No. | 1085173 |
|---|---|
| Manufacturers Part No. | 1085173 |
| Phoenix Ethernet Series: | Unmanged Switch 1000 |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 4 |
| Total 100/1000 (FX) Ports: | 2 |
| Total Ethernet Ports: | 6 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP30 |
Description
Unmanaged Industrial Ethernet Switch
4 x Twisted Pair RJ45 Ports
- 4 x10/100/1000 Mbps Ports
- 2 x SFP port 100/1000Mbps
- PROFINET Conformance-Class A
- Transmission length (RJ45):100 m (per segment)
- Auto Negotiation and Autocrossing
- Signal LEDs: Data receive, Link status
- Supply voltage: 24V DC
- Supply voltage range: 9 V DC ... 32 V DC
- Power supply connection Via COMBICON, max. conductor cross section 2.5 mm²
- Connection Method: Push-in spring connection
- Typical current consumption:48 mA
- Degree of protection: IP30
- Operating Temperature: -10 °C ... 60 °C
- Width: 22.5mm
- Height: 117mm
- Depth: 84mm
- Housing Material: Polycarbonate fibre reinforced
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 136 g
- Part Number 1085173
- GTIN: 4055626834665
- Customs tariff number: 85176200
- Country of origin: TW
