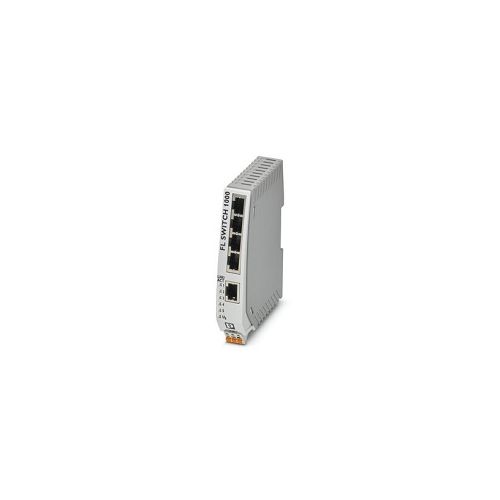

FL SWITCH 1105N | 1085254 | Ethernet Switch

Unmanaged switch, 5 x Twisted Pair (TP) RJ45, 10/100/1000 Mbps, Housing:- Polycarbonate fiber reinforced, DIN Rail Mounting
More Information
Complete Electronics Part No 1085254
Manufacturers Part No. 1085254
Phoenix Ethernet Series Unmanged Switch 1000
Managed / Unmanaged Unmanaged
Total 10/100/1000 (RJ45) Ports 5
Total Ethernet Ports 5
IP Rating IP30
Description

Unmanaged Industrial Ethernet Switch

5 x Twisted Pair RJ45 Ports

  • 5 x10/100/1000 Mbps Ports
  • Transmission length (RJ45):100 m (per segment)
  • Auto Negotiation and Autocrossing
  • Signal LEDs: Data receive, Link status
  • Supply voltage: 24V DC / 24 V AC (50/60Hz)
  • Supply voltage range: 9 V DC ... 32 V DC / 18 V AC....30V AC (50/60 Hz)
  • Power supply connection Via COMBICON, max. conductor cross section 2.5 mm²
  • Connection Method: Push-in spring connection
  • Typical current consumption:38 mA
  • Degree of protection: IP30
  • Operating Temperature: -10 °C ... 60 °C
  • Width: 22.5mm
  • Height: 117mm
  • Depth: 84mm
  • Housing Material: Polycarbonate fibre reinforced
  • Mounting Type: DIN Rail
  • Weight per Piece (excluding packing): 135 g
  • Part Number 1085254
  • GTIN: 4055626835402
  • Customs tariff number: 85176200
  • Country of origin: TW
