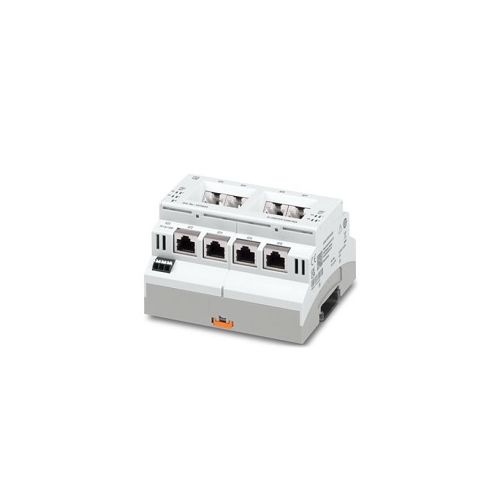

FL SWITCH 1108 REG | 1473643 | Ethernet Switch
Unmanaged Switch 1000 REG, 8 RJ45 port 10/100/1000 Mbps, REG design in accordance with DIN 43880, Auto negotiation, Autocrossing
More Information
Complete Electronics Part No.
1473643
Manufacturers Part No.
1473643
Phoenix Ethernet Series:
Unmanaged Switch 1000 REG
Managed / Unmanaged:
Unmanaged
Total 10/100/1000 (RJ45) Ports:
8
Total Ethernet Ports:
8
IP Rating:
IP20
Description
FL SWITCH 1108 REG
Unmanaged Ethernet Switch
Ethernet (RJ45 x 8)
Transmission speed: 10/100/1000 Mbps
RJ45 jack x 8
Transmission length: 100 m (per segment)
Signal LED's: US1, Link, and Activity
Auto negotiation and Auto Crossing
Store and Forward switching mode, 10/100 Mbps, depending on the frame size
Ethernet (Optical)
N/A
Functions
Unmanaged switch
Store and Forward switching mode
Supply voltage: 24V DC / 24 V AC (50/60 Hz)
Supply voltage range: 9 V DC ... 32 V DC / 12 V AC...30 V AC
Power supply connection: Spring-cage connection
Typical current consumption:
Degree of protection: IP20
Operating Temperature: 5°C ... 50°C
Approvals:
Dimensions
Width: 108mm
Height: 90mm
Depth: 62mm
Housing Material: Polycarbonate
Mounting Type: DIN Rail
Commercial data
Weight per Piece (excluding packing): 196 g
Part Number: 1473643
GTIN: 4063151884093
Customs Tariff Number: 85176200
Minimum Order Quantity: 1pc.
Country Of Origin: TW
