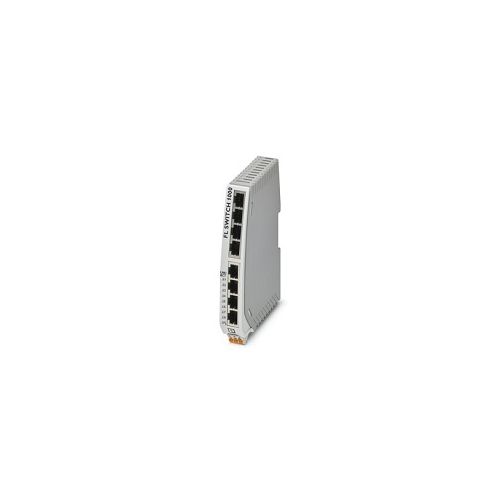

FL SWITCH 1108N | 1085243 | Ethernet Switch
Unmanaged switch, 5 x Twisted Pair (TP) RJ45, 10/100/1000 Mbps, Housing:- Polycarbonate fiber reinforced, DIN Rail Mounting
| Complete Electronics Part No. | 1085243 |
|---|---|
| Manufacturers Part No. | 1085243 |
| Phoenix Ethernet Series: | Unmanged Switch 1000 |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100/1000 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP30 |
Description
Unmanaged Industrial Ethernet Switch
8 x Twisted Pair RJ45 Ports
8 x10/100/1000 Mbps Ports
QoS-prioritized (Quality of Service) messages
Jumbo frame support (frame size up to 9216 bytes/frame)
Local diagnostic indicators with LEDs
Enhanced traffic prioritization for automation protocols
PROFINET PTCP filter for reliable communication on PROFINET networks
Energy-efficient Ethernet in accord. with IEEE 802.3az
PROFINET Conformance Class A for real-time data exchange
Transmission length (RJ45):100 m (per segment)
Auto Negotiation and Autocrossing
Signal LEDs: Data receive, Link status
Supply voltage: 24V DC / 24 V AC (50/60Hz)
Supply voltage range: 9 V DC ... 32 V DC / 18 V AC....30V AC (50/60 Hz)
Power supply connection Via COMBICON, max. conductor cross section 2.5 mm²
Connection Method: Push-in spring connection
Typical current consumption:54 mA
Degree of protection: IP30
Operating Temperature: -10 °C ... 60 °C
Width: 22.5mm
Height: 140.4mm
Depth: 92.4mm
Housing Material: Polycarbonate fibre reinforced
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 179 g
Part Number 1085243
GTIN: 4055626835013
Customs tariff number: 85176200
Country of origin: TW
