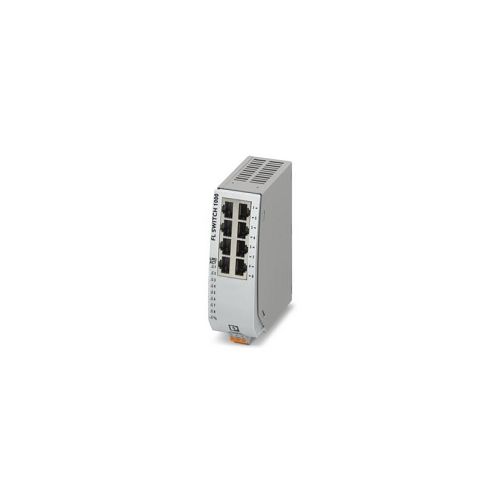

FL SWITCH 1108T | 1085088 | Ethernet Switch

Ethernet switch, wide temperature range, eight RJ45 ports with 10/100/1000 Mbps on all ports, automatic data transmission speed detection and QoS

More Information
Complete Electronics Part No. 1085088
Manufacturers Part No. 1085088
Phoenix Ethernet Series: Unmanged Switch 1000
Managed / Unmanaged: Unmanaged
Total 10/100/1000 (RJ45) Ports: 8
Total Ethernet Ports: 8
IP Rating: IP30
Description

FL SWITCH 1108T

Unmanaged Ethernet Switch

Ethernet (RJ45 x 8)

Transmission speed: 10/100/1000 Mbps
RJ45 jack x 8
Transmission length: 100 m (per segment)
Signal LED's: Data receive, link status
Auto negotiation and Auto Crossing


Ethernet (Optical)

N/A

Functions

Unmanaged switch
Quality of Service (QoS) prioritization (IEEE 802.1p)
Store and Forward switching mode
Supply voltage: 24V DC / 24 V AC  (50/60 Hz)
Supply voltage range: 9 V DC ... 32 V DC  / 18 V AC...30 V AC
Power supply connection: Via COMBICON, max. conductor cross section 2.5 mm²
Typical current consumption: 55 mA (at 24 V DC)
Degree of protection: IP30
Operating Temperature: -40°C ... 75°C
Approvals: CE-compliant, ATEX II 3 G Ex ec IIC T4 Gc

Dimensions

Width: 40mm
Height: 125.4mm
Depth: 84mm
Housing Material: Polycarbonate fiber reinforced / Aluminum / steel sheet DC01
Mounting Type: DIN Rail

Commercial data

Weight per Piece (excluding packing): 274 g
Part Number: 1085088
GTIN: 4055626833170
Minimum Order Quantity: 1pc.
