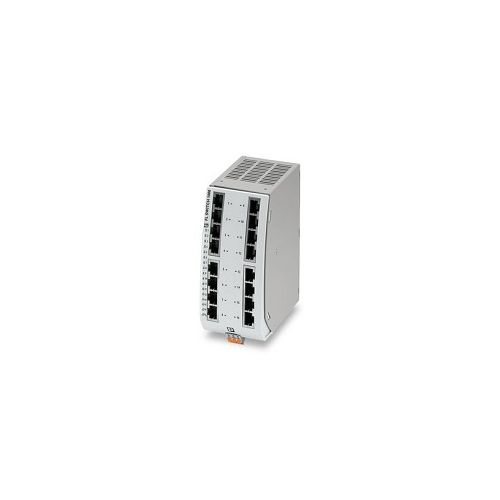

FL SWITCH 1116T | 1085115 | Ethernet Switch
Ethernet switch, sixteen RJ45 ports with 10/100/1000 Mbps on all ports, wide temperature range, automatic data transmission speed detection
| Complete Electronics Part No. | 1085115 |
|---|---|
| Manufacturers Part No. | 1085115 |
| Phoenix Ethernet Series: | Unmanged Switch 1000 |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100/1000 (RJ45) Ports: | 16 |
| Total Ethernet Ports: | 16 |
| IP Rating: | IP30 |
Description
FL SWITCH 1116T
16 x Twisted Pair RJ45 Ports
- 16 x 10/100/1000 Mbps RJ45 Ports
- PROFINET Conformance-Class A
- Transmission length:100 m (per segment)
- Auto Negotiation and Autocrossing
- Signal LEDs: Data receive, Link status
- Quality of Service (QoS) prioritization (IEEE 802.1p)
- Supply voltage: 24V DC
- Supply voltage range: 9 V DC ... 32 V DC, 18 V AC ... 30 V AC (50/60 Hz)
- Power supply connection Via COMBICON, max. conductor cross section 2.5 mm²
- Connection Method: Push-in spring connection
- Typical current consumption: 191mA (at 24 V DC)
- Degree of protection: IP30
- Operating Temperature: -40°C ... 75°C
- Width: 65mm
- Height: 141mm
- Depth: 107mm
- Housing Material: Polycarbonate fibre reinforced
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 631 g
- Part Number 1085115
- GTIN: 4055626834603
- Customs tariff number: 85176200
- Country of origin: TW
