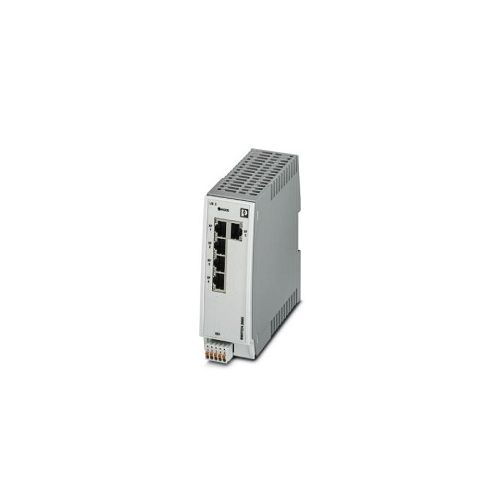

FL SWITCH 2005 | 2702323 | Ethernet Switch
Managed switch, 5 x Twisted Pair (TP) RJ45, 10 /100 Mbps, PROFINET Conformance Class A, Housing:- Polycarbonate fiber reinforced
| Complete Electronics Part No. | 2702323 |
|---|---|
| Manufacturers Part No. | 2702323 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports | 5 |
| Total Ethernet Ports | 5 |
| IP Rating: | IP20 |
Description
Managed Industrial Ethernet Switch
5 x Twisted Pair RJ45 Ports
- 5 x RJ45 10/100 Mbps
- PROFINET Conformance Class A
- Auto Negotiation and Autocrossing
- Transmission Length: 100m (Per Segment)
- Signal LED's: Data receive, link status
- Supply voltage: 24V DC (Single)
- Supply voltage range: 18 V DC ... 32 V DC
- Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
- Push in Spring Connection
- Typical current consumption: 165 mA (at US = 24 V DC and 25 °C ambient temperature)
- Degree of protection: IP20
- Operating Temperature: 0 °C ... 60 °C
- Width: 45mm
- Height: 130mm
- Depth: 115mm
- Housing Material: Polycarbonate fiber reinforced
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 220 g
- Part Number 2702323
- GTIN: 4055626128344
- Customs tariff number: 85176200
- Country of origin: DE
