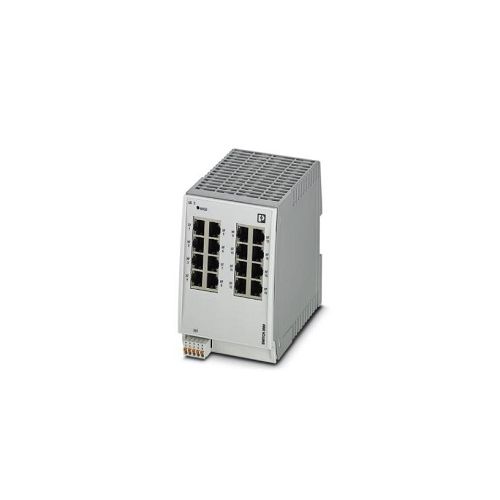

FL SWITCH 2016 | 2702903 | Ethernet Switch

DIN Rail Mount managed Ethernet switch, 16 x RJ45 10/100 Mbps Ports, PROFINET Conformance-Class A
More Information
Complete Electronics Part No 2702903
Manufacturers Part No. 2702903
Phoenix Ethernet Series Managed Switch 2000
Managed / Unmanaged Managed
Total 10/100 (RJ45) Ports 16
Total Ethernet Ports 16
IP Rating IP20
Description

Din Rail mount managed Ethernet switch

16 x RJ45 ports 10/100 Mpbs

  • Auto negotiation and autocrossing (RJ45 Interface)
  • Transmission Length: 100m (per segment RJ45)
  • PROFINET Conformance-Class A
  • Signal LED's: Data Receive, Link status
  • Supply Voltage: 24 V DC (Redundant)
  • Supply Voltage Range: 18 V DC....32 V DC
  • Typical Current Consumption: 315 mA (at US = 24 V DC and 25°C ambient temperature)
  • Power Supply Connection: via COMBICON, max. conductor cross section 1.5 mm²
  • Degree of protection: IP20
  • Operating Temperature: -40°C ... 70°C
  • Width: 85mm
  • Height: 130mm
  • Depth: 115mm
  • Mounting Type: DIN Rail
  • Housing: Polycarbonate fiber reinforced
  • Weight per Piece (excluding packing): 435 g
  • Part Number 2702903
  • GTIN: 4055626397207
  • Customs tariff number: 85176200
  • Country of origin: DE
