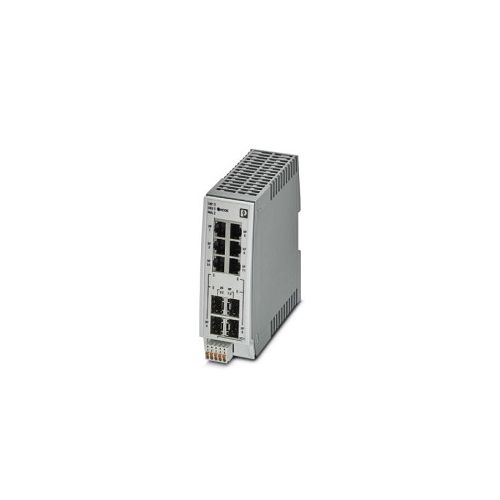

FL SWITCH 2204-2TC-2SFX | 2702334 | Ethernet Switch
DIN Rail Mount managed Ethernet switch, 4 x RJ45 10/100/ Mbps Ports, 2 x SFP ports (MM),100 Mbps, 2 x Combo ports 10/100 Mbps
More Information
Complete Electronics Part No.
2702334
Manufacturers Part No.
2702334
Phoenix Ethernet Series:
Managed Switch 2000
Managed / Unmanaged:
Managed
Total 100 Base Ports
2
Total 10/100/1000 (RJ45) Ports
4
Number of Combo Ports
2
Total Ethernet Ports
8
FX (Optical) Connector Type:
SFP
IP Rating:
IP20
Description
Din Rail mount managed Ethernet switch
14 x RJ45 ports + 2 x SFP ports + 2 Combo ports
14 x RJ45 ports 10/100 Mbps
2 x SFP Multi Mode ports 100 Mbps
2 x Combo ports 10/100 Mbps
Auto negotiation and autocrossing (RJ45 Interface)
Transmission Length: 100m (per segment RJ45)
Transmission Length (SFP): up to 40 km (Depending on the fiber/SFP module used)
Fiber optic interface: SFP
Combo ports: SFP or RJ45
PROFINET Conformance-Class B
Signal LED's: Data Receive, Link status
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 12 V DC....57 V DC
Signal Contact Voltage: Typical 24 V DC
Typical Current Consumption: 250 mA (at U S = 24 V DC and 25°C ambient temperature)
Power Supply Connection: via COMBICON, max. conductor cross section 1.5 mm²
Connection method: Push-in spring connection
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Width: 45mm
Height: 130mm
Depth: 115mm
Mounting Type: DIN Rail
Housing: Polycarbonate fiber reinforced
Weight per Piece (excluding packing): 308.5 g
Part Number 2702334
GTIN: 4055626129006
Customs tariff number: 85176200
Country of origin: DE
