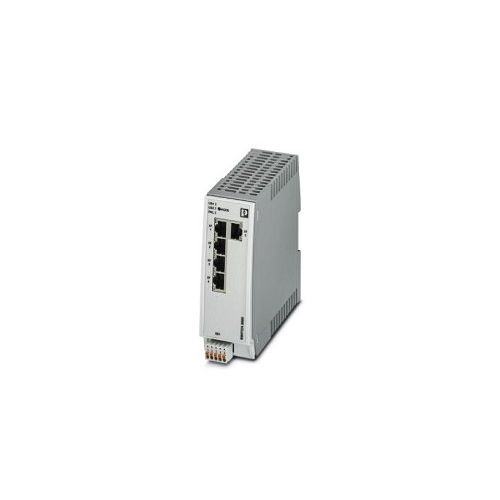

FL SWITCH 2205 | 2702326 | Ethernet Switch
DIN Rail Mount managed Ethernet switch, 5 x RJ45 10/100/ Mbps Ports, PROFINET Conformance-Class B
More Information
Complete Electronics Part No.
2702326
Manufacturers Part No.
2702328
Phoenix Ethernet Series:
Managed Switch 2000
Managed / Unmanaged:
Managed
Total 10/100 (RJ45) Ports
5
Total Ethernet Ports
5
IP Rating:
IP20
Description
Din Rail mount managed Ethernet switch
5 x RJ45 ports
PROFINET Conformance - Class B
5 x RJ45 ports 10/100 Mbps
Auto negotiation and autocrossing (RJ45 Interface)
Transmission Length: 100m (per segment RJ45)
Link Layer Discovery Protocol ( LLDP)
Address Conflict Detection (LLD)
Store-and-forward switch, complies with IEEE 802.3
RSTP
VLANs
DHCP client, DHCP server (pool-based and port-based), DHCP option 82
Configuration memory
Web-based management, SNMP
PROFINET Conformance-Class B
Signal LED's: Data Receive, Link status
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 9 V DC....57 V DC
Signal Control Voltage: Typically 24V DC
Typical Current Consumption: 170 mA (at U S = 24 V DC and 25°C ambient temperature)
Power Supply Connection: via COMBICON, max. conductor cross section 1.5 mm²
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Width: 45mm
Height: 130mm
Depth: 115mm
Mounting Type: DIN Rail
Housing: Polycarbonate fiber reinforced
Weight per Piece (excluding packing): 230 g
Part Number 2702326
GTIN: 4055626128924
Customs tariff number: 85176200
Country of origin: DE
