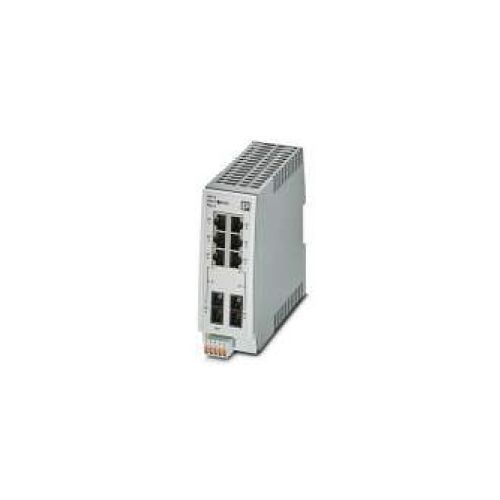

FL SWITCH 2206 - 2FX SM | 2702331 | Ethernet Switch
Managed Switch 2000, 6 RJ45 ports 10/100 Mbps, 2 SC single- mode 100 Mbps, PROFINET Conformance-Class B, Extended temperature range
| Complete Electronics Part No. | 2702331 |
|---|---|
| Manufacturers Part No. | 2702331 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SC |
| IP Rating: | IP20 |
Description
Managed Industrial Ethernet Switch
6 x Twisted Pair RJ45 Ports + 2 x SC
- 6 x RJ45 10/100 Mbps
- 2 x SC Connection, 100Mbps
- Single Mode FO
- PROFINET Conformance Class B
- Auto Negotiation and Autocrossing
- Transmission Length: 100m (Per Segment)
- Signal LED's: Data receive, link status
- Supply voltage: 24V DC (Redundant)
- Supply voltage range: 9 V DC ... 57 V DC
- Power Supply Connection: Via COMBICON, max. conductor cross section 1.5 mm²
- Push in Spring Connection
- Typical current consumption: 260 mA (at US = 24 V DC and 25 °C ambient temperature)
- Degree of protection: IP20
- Operating Temperature: -40°C ... 70°C
- Width: 45mm
- Height: 130mm
- Depth: 119mm
- Housing Material: Polycarbonate fiber reinforced
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 260 g
- Part Number 2702331
- GTIN: 4055626136486
- Customs tariff number: 85176200
- Country of origin: DE
