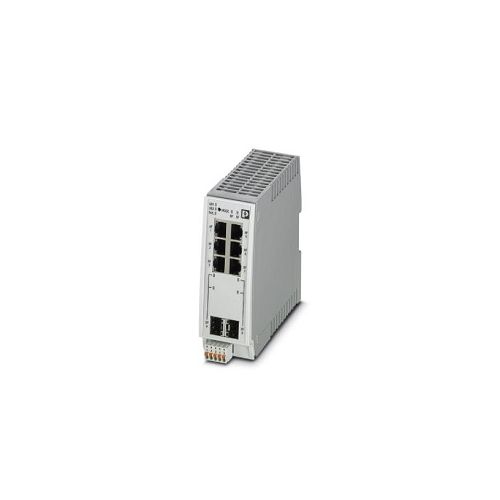

FL SWITCH 2206-2SFX PN | 1044028 | Ethernet Switch
Managed Switch 2000, 6 RJ45 ports 10/100 Mbps, 2 SFP ports 100 Mbps, PROFINET Conformance-Class B, PROFINET mode preset, PROFINET status LEDs
| Complete Electronics Part No. | 1044028 |
|---|---|
| Manufacturers Part No. | 1044028 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Total 10/100/1000 (RJ45) Ports: | 6 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description
DIN Rail mount Ethernet switch
16 x RJ45 ports + 2 x SFP ports
- 6 x 10/100 Mbps RJ45 ports
- 2 x 100 Mbps SFP Port (full duplex)
- Auto negotiation and autocrossing
- Transmission Length (RJ45): 100m (per segment)
- MRP (client and manager)
- RSTP
- VLANs
- DHCP client, DHCP server (pool-based and port-based), DHCP option 82
- Web-based management, SNMP
- PROFINET mode preset
- Redundant Power Supply
- Signal LED's: LNK/ACT
- Power Supply Connection: via COMBICON, max. conductor cross section 1.5 mm²
- Push in Spring Connection
- Supply Voltage: 24 V DC (Redundant)
- Supply Voltage Range: 12 V DC...57 V DC
- Signal Contact control Voltage: 24 V DC
- Typical Current Consumption: 280 mA (at US = 24 V DC and 25 °C ambient temperature))
- Degree of protection: IP20
- Operating Temperature: -40°C ... 70°C
- Width: 45mm
- Height: 130mm
- Depth: 119mm
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 415.7 g
- Housing Material: Polycarbonate fiber reinforced
- Part Number 1044028
- GTIN: 4055626617046
- Customs tariff number: 85176200
- Country of origin: DE
