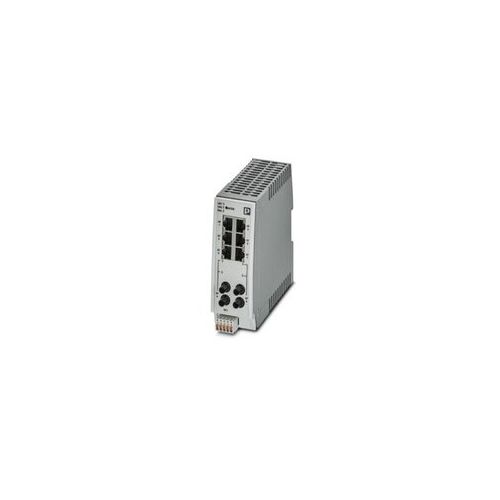

FL SWITCH 2206-FX | 2702328 | Ethernet Switch
DIN Rail Mount managed Ethernet switch, 7 x RJ45 10/100/ Mbps Ports, 1 x SC port (MM),100 Mbps, PROFINET Conformance-Class B
| Complete Electronics Part No. | 2702328 |
|---|---|
| Manufacturers Part No. | 2702328 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 7 |
| Total 100 Base Ports: | 1 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SC |
| IP Rating: | IP20 |
Description
Din Rail mount managed Ethernet switch
7 x RJ45 ports + 1 x SC (MM) ports
PROFINET Conformance - Class B
7 x RJ45 ports 10/100 Mbps
1 x SC Multi Mode ports 100 Mbps (Full Duplex)
Auto negotiation and autocrossing (RJ45 Interface)
Transmission Length: 100m (per segment RJ45)
Fiber optic interface: SC
Transmission Length (SC): 11000 m (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
Transmission Length (SC): 6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200)
Transmission Length (SC): 3000 m (fiberglass with F-G 62.5/125 2.6 dB/km F600)
Transmission Length (SC): 2800 m (fiberglass with F-G 50/125 1.6 dB/km F800)
Link Layer Discovery Protocol ( LLDP)
Address Conflict Detection (LLD)
Store-and-forward switch, complies with IEEE 802.3
MRP (client and manager)
VLANs
DHCP client, DHCP server (pool-based and port-based), DHCP option 82
Configuration memory
Web-based management, SNMP
PROFINET Conformance-Class B
Signal LED's: Data Receive, Link status
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 9 V DC....57 V DC
Signal Control Voltage: Typically 24V DC
Typical Current Consumption: 220 mA (at US = 24 V DC and 25°C ambient temperature)
Power Supply Connection: via COMBICON, max. conductor cross section 1.5 mm²
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Width: 45mm
Height: 130mm
Depth: 115mm
Mounting Type: DIN Rail
Housing: Polycarbonate fiber reinforced
Weight per Piece (excluding packing): 260 g
Part Number 2702328
GTIN: 4055626128948
Customs tariff number: 85176200
Country of origin: DE
