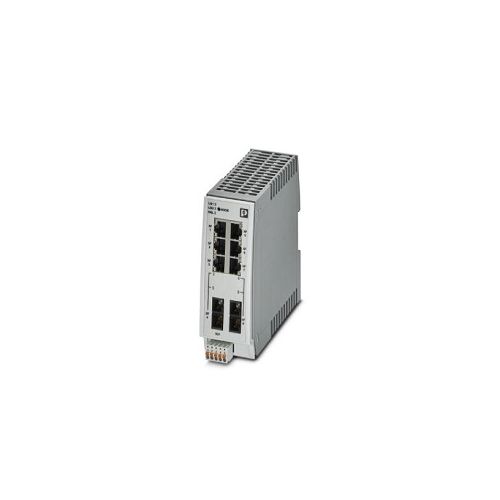

FL SWITCH 2206C-2FX | 1095628 | Ethernet Switch
DIN Rail Mount Ethernet switch, 6 x 10/100 Mbps RJ45 ports, + 2 x Multi mode 100 Mbps Ports, PROFINET Conformance-Class B, Coated PCB
| Complete Electronics Part No. | 1095628 |
|---|---|
| Manufacturers Part No. | 1095628 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SC |
| IP Rating: | IP20 |
Description
DIN Rail mount Industrial Ethernet switch
6 x RJ45 port + 2 x 100 Mbps SC multi mode
6 x 10/100 Mbps RJ45 ports
2 x 100 Mbps SC Multi Mode Ports
PROFINET Conformance-Class B
Auto negotiation and autocrossing
Transmission Length: 100m (per segment)
MRP (client and manager)
RSTP
VLANs
DHCP client, DHCP server (pool-based and port-based), DHCP option 82
Web-based management, SNMP
Suitable for PROFINET and EtherNet/IP™ networks
Signal LED's: Data receive, link status
Power Supply Connection: Via COMBICON, max. conductor cross section 1.5 mm²
Connection Method: Push-in spring connection
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 9 V DC....57 V DC
Typical Current Consumption: 260 mA
Signal contact control voltage: 24 V DC (Typical)
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Housing: Polycarbonate fiber reinforced
Width: 45mm
Height: 130mm
Depth: 115mm
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 365 g
Part Number 1095628
GTIN: 4055626925226
Customs tariff number: 85176200
Country of origin: DE
