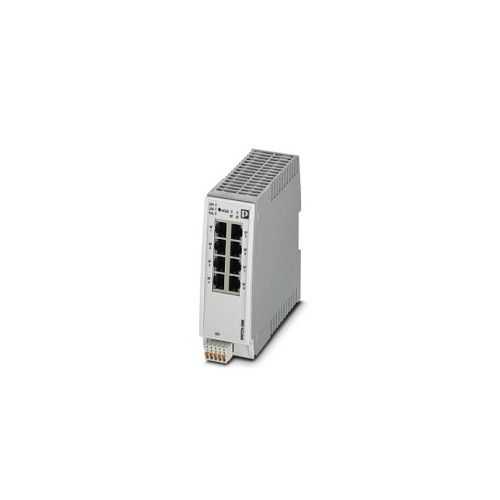

FL SWITCH 2208 PN | 1044024 | Ethernet Switch
Managed switch, 18 x Twisted Pair (TP) RJ45, 10 /100 Mbps, PROFINET Conformance Class B, Housing:- Polycarbonate fiber reinforced
| Complete Electronics Part No. | 1044024 |
|---|---|
| Manufacturers Part No. | 1044024 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP20 |
Description
Managed Industrial Ethernet Switch
8 x Twisted Pair RJ45 Ports
8 x RJ45 10/100 Mbps
MRP (client and manager)
RSTP
DHCP client, DHCP server (pool-based and port-based),
DHCP option 82
VLANs
Configuration memory
Web-based management, SNMP
Easy and fast startup and commissioning with the FL NETWORK MANAGER software
PROFINET mode preset
PROFINET status LEDs
PROFINET Conformance Class B
Auto Negotiation and Autocrossing
Transmission Length: 100m (Per Segment)
Signal LED's: Data receive, link status
Supply voltage: 24V DC (Redundant)
Supply voltage range: 12 V DC ... 57 V DC
Power Supply Connection: Via COMBICON, max. conductor cross section 1.5 mm²
Push in Spring Connection
Typical current consumption: 190 mA (at US = 24 V DC and 25 °C ambient temperature)
Degree of protection: IP20
Operating Temperature: -40 °C ... 70 °C
Width: 45mm
Height: 130mm
Depth: 115mm
Housing Material: Polycarbonate fiber reinforced
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 385 g
Part Number 1044024
GTIN: 4055626616988
Customs tariff number: 85176200
Country of origin: DE
