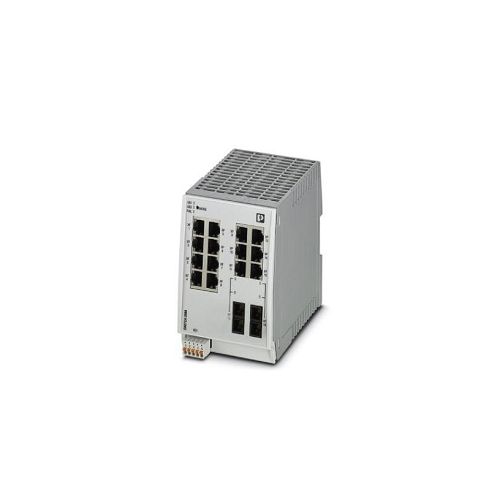

FL SWITCH 2214-2FX SM | 2702906 | Ethernet Switch
DIN Rail Mount managed Ethernet switch, 14 x RJ45 10/100 Mbps Ports, 2 x SC ports (SM),100 Mbps, PROFINET Conformance-Class B
| Complete Electronics Part No. | 2702906 |
|---|---|
| Manufacturers Part No. | 2702906 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 14 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 16 |
| FX (Optical) Connector Type: | SC |
| IP Rating: | IP20 |
Description
Din Rail mount managed Ethernet switch
14 x RJ45 ports + 2 x SC ports
14 x RJ45 ports 10/100 Mbps
2 x SC Single Mode ports 100 Mbps
Auto negotiation and autocrossing (RJ45 Interface)
Transmission Length: 100m (per segment RJ45)
Transmission Length: 36000 m (fiberglass with F-G 9/125 0.36 dB/km)
Transmission Length: 32000 m (fiberglass with F-G 9/125 0.4 dB/km)
Transmission Length: 26000 m (fiberglass with F-G 9/125 0.5 dB/km)
PROFINET Conformance-Class B
Fiber optic interface: SC
Signal LED's: Data Receive, Link status
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 12 V DC....57 V DC
Signal Contact Voltage: Typical 24 V DC
Typical Current Consumption: 375 mA (at US = 24 V DC and 25°C ambient temperature)
Power Supply Connection: via COMBICON, max. conductor cross section 1.5 mm²
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Width: 85mm
Height: 130mm
Depth: 115mm
Mounting Type: DIN Rail
Housing: Polycarbonate fiber reinforced
Weight per Piece (excluding packing): 470 g
Part Number 2702906
GTIN: 4055626397306
Customs tariff number: 85176200
Country of origin: DE
