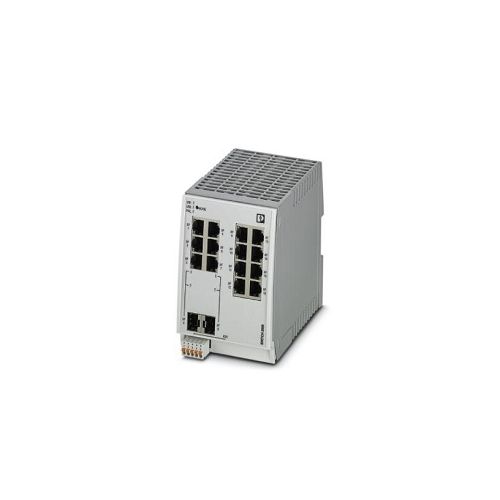

FL SWITCH 2214-2SFX | 1006188 | Ethernet Switch
Managed Switch 2000, 14 RJ45 ports 10/100 Mbps, 2 SFP ports 100 Mbps, PROFINET Conformance-Class B, DIN Rail Mount
| Complete Electronics Part No. | 1006188 |
|---|---|
| Manufacturers Part No. | 1006188 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 14 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 16 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description
DIN Rail mount Ethernet switch
14 x RJ45 ports + 2 x SFP ports
- 14 x 10/100 Mbps PoE+ RJ45 ports
- 2 x 100 Mbps SFP Port (full duplex)
- Auto negotiation and autocrossing
- Transmission Length (RJ45): 100m (per segment)
- MRP (client and manager)
- RSTP
- VLANs
- DHCP client, DHCP server (pool-based and port-based), DHCP option 82
- Web-based management, SNMP
- Configuration memory
- Redundant Power Supply
- Signal LED's: Data receive, link status
- Suitable for PROFINET and EtherNet/IP™ networks
- Power Supply Connection: via COMBICON, max. conductor cross section 1.5 mm²
- Push in Spring Connection
- Supply Voltage: 24 V DC (Redundant)
- Supply Voltage Range: 12 V DC...57 V DC
- Signal Contact control Voltage: 24 V DC
- Typical Current Consumption: 460 mA (at US = 24 V DC and 25 °C ambient temperature))
- Degree of protection: IP20
- Operating Temperature: -40°C ... 70°C
- Width: 85mm
- Height: 130mm
- Depth: 115mm
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 470 g
- Housing Material: Polycarbonate fiber reinforced
- Part Number 1006191
- GTIN: 4055626477503
- Customs tariff number: 85176200
- Country of origin: DE
