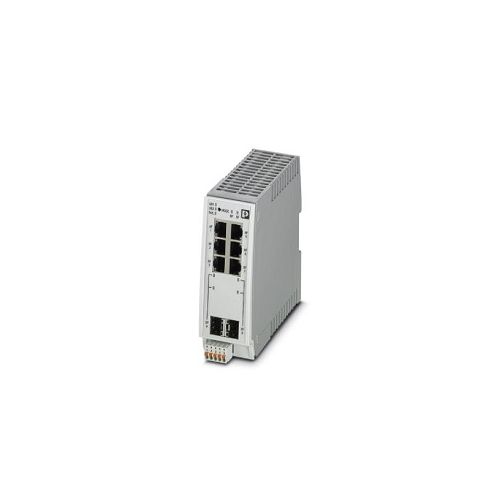

FL SWITCH 2306-2SFP PN | 1009222 | Ethernet Switch
Managed Switch 2000, 6 RJ45 ports 10/100/1000 Mbps, 2 SFP ports 100/1000 Mbps, PROFINET Conformance-Class B, PROFINET mode preset, PROFINET status LEDs
| Complete Electronics Part No. | 1009222 |
|---|---|
| Manufacturers Part No. | 1009222 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 100/1000 (FX) Ports: | 2 |
| Total 10/100/1000 (RJ45) Ports: | 6 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description
DIN Rail mount Ethernet switch
6 x RJ45 ports + 2 x SFP ports
- 6 x 10/100/1000 Mbps PoE+ RJ45 ports
- 2 x 100/1000 Mbps SFP Port (full duplex)
Auto negotiation and autocrossing
Transmission Length (RJ45): 100m (per segment)
MRP (client and manager)
RSTP
VLANs
DHCP client, DHCP server (pool-based and port-based), DHCP option 82
Web-based management, SNMP
PROFINET mode preset
Redundant Power Supply
Signal LED's: LNK/ACT
Power Supply Connection: via COMBICON, max. conductor cross section 1.5 mm²
Push in Spring Connection
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 12 V DC...57 V DC
Signal Contact control Voltage: 24 V DC
Typical Current Consumption: 280 mA (at US = 24 V DC and 25 °C ambient temperature))
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Width: 45mm
Height: 130mm
Depth: 115mm
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 290 g
Housing Material: Polycarbonate fiber reinforced
Part Number 1009222
GTIN: 4055626481753
Customs tariff number: 85176200
Country of origin: DE
