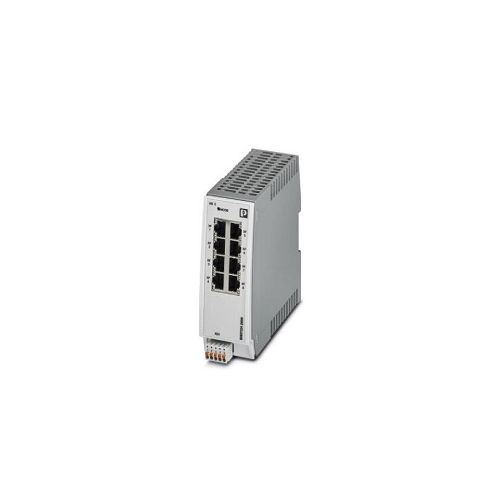

FL SWITCH 2308 | 1009220 | Ethernet Switch
Managed Switch 2000, 8 RJ45 ports 10/100/1000 Mbps, PROFINET Conformance-Class B, Extended temperature range
| Complete Electronics Part No. | 1009220 |
|---|---|
| Manufacturers Part No. | 1009220 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP20 |
Description
Managed Industrial Ethernet Switch
8 x Twisted Pair RJ45 Ports
- 8 x RJ45 10/100/1000 Mbps
- PROFINET Conformance Class A
- Auto Negotiation and Autocrossing
- Jumbo frames (max. 9,600 bytes)
- Transmission Length: 100m (Per Segment)
- Signal LED's: 2 LED's per port, link status
- Supply voltage: 24V DC (Single)
- Supply voltage range: 12 V DC ... 57 V DC
- Power Supply Connection: Via COMBICON, max. conductor cross section 1.5 mm²
- Push in Spring Connection
- Typical current consumption: 280 mA (at US = 24 V DC and 25 °C ambient temperature)
- Degree of protection: IP20
- Operating Temperature: -40°C ... 70 °C
- Width: 45mm
- Height: 130mm
- Depth: 119mm
- Housing Material: Polycarbonate fiber reinforced
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 420 g
- Part Number 1009220
- GTIN: 4055626481913
- Customs tariff number: 85176200
- Country of origin: DE
