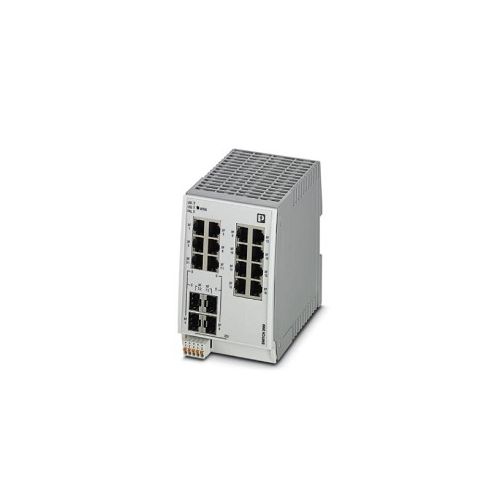

FL SWITCH 2312-2GC-2SFP | 2702910 | Ethernet Switch
DIN Rail Mount Managed Ethernet switch, 12 x RJ45 10/100/1000 Mbps Ports, 2 x SFP ports,100/1000 Mbps, 2 x Combo Ports 10/100/1000
| Complete Electronics Part No. | 2702910 |
|---|---|
| Manufacturers Part No. | 2702910 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 100/1000 (FX) Ports: | 2 |
| Total 10/100/1000 (RJ45) Ports: | 12 |
| Number of Combo Ports: | 2 |
| Total Ethernet Ports: | 16 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description
Din Rail mount managed Ethernet switch
12 x RJ45 ports + 2 x SFP ports + 2 Combo ports
12 x RJ45 ports 10/100/1000 Mbps
2 x SFP ports 100/1000 Mbps
2 x Combo Ports (SFP or RJ45) 10/100/1000 Mbps
Auto negotiation and autocrossing (RJ45 Interface)
Transmission Length: 100m (per segment RJ45)
PROFINET Conformance-Class B
Fiber optic interface: SFP
Transmisson Length: Up to 80 km (Depending on the fiber/SFP module used
Signal LED's: Data Receive, Link status
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 12 V DC....57 V DC
Signal Contact Voltage: Typical 24 V DC
Typical Current Consumption: 275 mA (at US = 24 V DC and 25°C ambient temperature)
Power Supply Connection: via COMBICON, max. conductor cross section 1.5 mm²
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Width: 85mm
Height: 130mm
Depth: 125mm
Mounting Type: DIN Rail
Housing: Polycarbonate fiber reinforced
Weight per Piece (excluding packing): 480 g
Part Number 2702910
GTIN: 4055626402642
Customs tariff number: 85176200
Country of origin: DE
