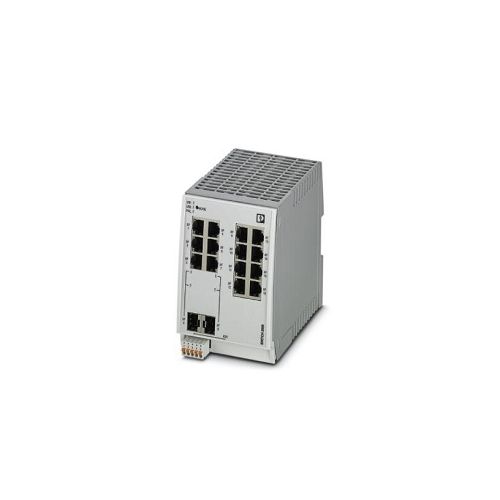

FL SWITCH 2314-2SFP | 1006191 | Ethernet Switch
Managed Switch 2000, 14 RJ45 ports 10/100/1000 Mbps, 2 SFP ports 100/1000 Mbps, PROFINET Conformance-Class B, DIN Rail Mount
| Complete Electronics Part No. | 1006191 |
|---|---|
| Manufacturers Part No. | 1006191 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 100/1000 (FX) Ports: | 2 |
| Total 10/100/1000 (RJ45) Ports: | 14 |
| Total Ethernet Ports: | 16 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description
DIN Rail mount Ethernet switch
14 x RJ45 ports + 2 x SFP ports
14 x 10/100/1000 Mbps PoE+ RJ45 ports
2 x 100/1000 Mbps SFP Port (full duplex)
Auto negotiation and autocrossing
Transmission Length (RJ45): 100m (per segment)
MRP (client and manager)
RSTP
VLANs
DHCP client, DHCP server (pool-based and port-based), DHCP option 82
Web-based management, SNMP
Configuration memory
Redundant Power Supply
Signal LED's: Data receive, link status
Suitable for PROFINET and EtherNet/IP™ networks
Power Supply Connection: via COMBICON, max. conductor cross section 1.5 mm²
Push in Spring Connection
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 12 V DC...57 V DC
Signal Contact control Voltage: 24 V DC
Typical Current Consumption: 460 mA (at US = 24 V DC and 25 °C ambient temperature)
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Width: 85mm
Height: 130mm
Depth: 115mm
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 470 g
Housing Material: Polycarbonate fiber reinforced
Part Number 1006191
GTIN: 4055626477503
Customs tariff number: 85176200
Country of origin: DE
