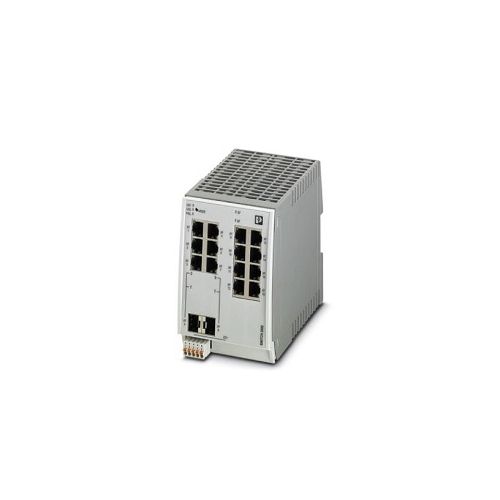

FL SWITCH 2314-2SFP PN | 1031683| Ethernet Switch
DIN Rail Mount Managed Ethernet switch, 14 x 10/100/1000 Mbps RJ45 ports, + 2 x SFP 100/1000 Mbps Ports, PROFINET Conformance-Class B, PROFINET mode preset
| Complete Electronics Part No. | 1031683 |
|---|---|
| Manufacturers Part No. | 1031683 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 100/1000 (FX) Ports: | 2 |
| Total 10/100/1000 (RJ45) Ports: | 14 |
| Total Ethernet Ports: | 16 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description
DIN Rail mount Industrial Ethernet switch
14 x RJ45 ports + 2 x SFP ports
- 14 x 10/100/1000 Mbps RJ45 ports
- 2 x 100/1000 Mbps SFP Ports
- PROFINET Conformance-Class B
- PROFINET mode preset
- PROFINET status LEDs
- Auto negotiation and autocrossing
- Transmission Length: 100m (per segment)
- MRP (client and manager)
- RSTP
- VLANs
- DHCP client, DHCP server (pool-based and port-based), DHCP option 82
- Configuration Memory
- Web-based management, SNMP
- Signal LED's: Data receive, link status
- Power Supply Connection: Via COMBICON, max. conductor cross section 1.5 mm²
- Connection Method: Push-in spring connection
- Supply Voltage: 24 V DC (Redundant)
- Supply Voltage Range: 12 V DC....57 V DC
- Typical Current Consumption: 325 mA
- Signal contact control voltage: 24 V DC (Typical)
- Degree of protection: IP20
- Operating Temperature: -40°C ... 70°C
- Housing: Polycarbonate fiber reinforced
- Width: 85mm
- Height: 130mm
- Depth: 119mm
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 470 g
- Part Number 1031683
- GTIN: 4055626535289
- Customs tariff number: 85176200
- Country of origin: DE
