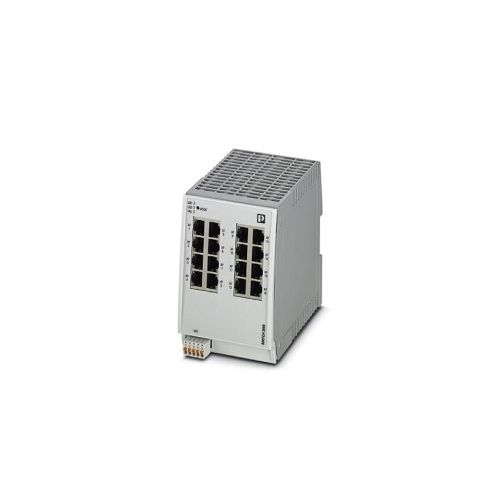

FL SWITCH 2316 | 2702909 | Ethernet Switch

Managed switch, 16 x Twisted Pair (TP) RJ45, 10 /100/1000 Mbps, PROFINET Conformance Class B, Housing:- Polycarbonate fiber reinforced

More Information
Complete Electronics Part No.	2702909
Manufacturers Part No.	2702909
Phoenix Ethernet Series:	Managed Switch 2000
Managed / Unmanaged:	Managed
Total 10/100/1000 (RJ45) Ports:	16
Total Ethernet Ports:	16
IP Rating:	IP20

Description

Managed Industrial Ethernet Switch

16 x RJ45 10/100/1000 Mbps
MRP (client and manager)
RSTP
DHCP client, DHCP server (pool-based and port-based),
DHCP option 82
VLANs
Configuration memory
Web-based management, SNMP
Easy and fast startup and commissioning with the FL NETWORK MANAGER software
Suitable for PROFINET and EtherNet/IP™ networks
PROFINET Conformance Class B
PROFINET mode preset
PROFINET status LED's
Auto Negotiation and Autocrossing
Transmission Length: 100m (Per Segment)
Signal LED's: Data receive, link status
Supply voltage: 24V DC (Redundant)
Supply voltage range: 12 V DC ... 57 V DC
Power Supply Connection: Via COMBICON, max. conductor cross section 1.5 mm²
Push in Spring Connection
Typical current consumption: 455 mA (at US = 24 V DC and 25 °C ambient temperature)
Degree of protection: IP20
Operating Temperature: -40 °C ... 70 °C
Width: 85mm
Height: 130mm
Depth: 115mm
Housing Material: Polycarbonate fiber reinforced
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 435 g
Part Number 2702909
GTIN: 4055626398723
Customs tariff number: 85176200
Country of origin: DE
