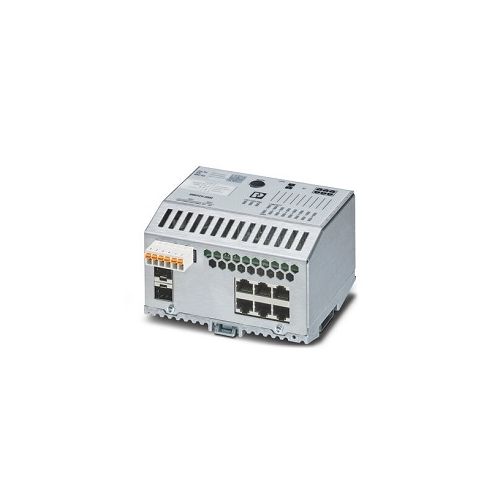

FL SWITCH 2406-2SFX | 1043414 | Ethernet Switch
DIN Rail Mount Managed Ethernet switch, 6 x 10/100 Mbps RJ45 ports, 2 x SFP 100 Mbps Ports, PROFINET conformance Class B
| Complete Electronics Part No. | 1043414 |
|---|---|
| Manufacturers Part No. | 1043414 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100/1000 (FX) Ports: | 2 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description
DIN Rail mount Industrial Ethernet switch
6 x RJ45 ports + 2 x SFP ports
6 x 10/100 Mbps RJ45 ports
2 x 100 Mbps SFP Ports (full duplex)
PROFINET Conformance-Class B
Auto negotiation and autocrossing
Transmission Length (RJ45): 100m (per segment)
MRP (client and manager)
RSTP
VLANs
DHCP client, DHCP server (pool-based and port-based), DHCP option 82
Configuration Memory
Web-based management, SNMP
Signal LED's: Data receive, link status
Suitable for PROFINET and EtherNet/IP™ networks
Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
Connection Method: Push-in spring connection
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 19.2 V DC....32 V DC
Typical Current Consumption: 180 mA (at US = 24 V DC and 25 °C ambient temperature)
Signal contact control voltage: 24 V DC (Typical)
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Base Plate Material: Die-cast aluminum, corrosion-resistant
Housing: Stainless steel 1.4301
Width: 128mm
Height: 110mm
Depth: 69mm
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 650 g
Part Number 1043414
GTIN: 4055626608594
Customs tariff number: 85176200
Country of origin: DE
