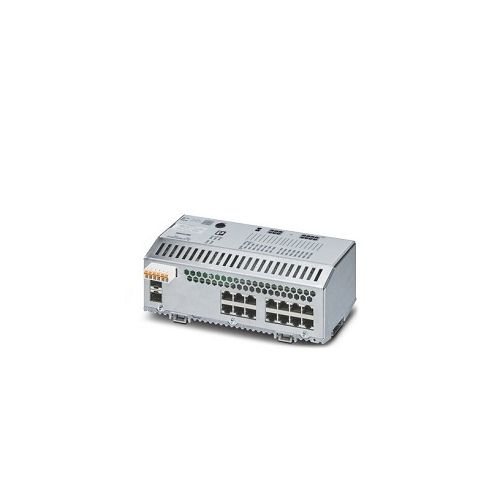

FL SWITCH 2414-2SFX PN | 1089139 | Ethernet Switch
DIN Rail Mount Managed Ethernet switch, 14 x 10/100 Mbps RJ45 ports, + 2 x SFP 100 Mbps Ports, PROFINET Conformance-Class B, PROFINET mode preset
| Complete Electronics Part No. | 1089139 |
|---|---|
| Manufacturers Part No. | 1089139 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 14 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 16 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description
Industrial Ethernet switch FL SWITCH 2414-2SFX PN
14 x RJ45 port + 2 x SFP ports
14 x 10/100 Mbps RJ45 ports
2 x 100 Mbps SFP Ports
PROFINET Conformance-Class B
PROFINET mode preset
PROFINET status LEDs
Auto negotiation and autocrossing
Transmission Length: 100m (per segment)
MRP (client and manager)
RSTP
VLANs
DHCP client, DHCP server (pool-based and port-based), DHCP option 82
Configuration Memory
Web-based management, SNMP
Signal LED's: Data receive, link status
Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
Connection Method: Push-in spring connection
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 19.2 V DC....32 V DC
Typical Current Consumption: 460 mA
Signal contact control voltage: 24 V DC (Typical)
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Base Plate Material: Die-cast aluminum, corrosion-resistant
Housing: Stainless steel 1.4301
Width: 214mm
Height: 110mm
Depth: 69mm
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 1035 g
Part Number 1089139
GTIN: 4055626892467
Customs tariff number: 85176200
Country of origin: DE
