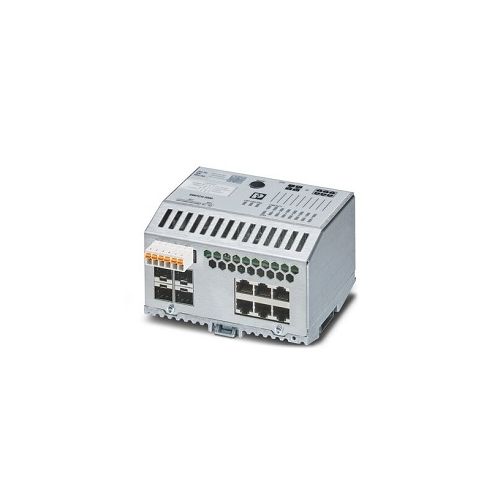

FL SWITCH 2504-2GC-2SFP | 1088872 | Ethernet Switch
DIN Rail Mount Managed Ethernet switch, 4 x 10/100/1000 Mbps RJ45 ports, + 2 x SFP 100/1000 Mbps Ports, 2 x Combo 10/100/1000 Mbps Ports
| Complete Electronics Part No. | 1088872 |
|---|---|
| Manufacturers Part No. | 1088872 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 4 |
| Total 100 Base Ports: | 2 |
| Number of Combo Ports: | 2 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description
DIN Rail mount Industrial Ethernet switch
4 x RJ45 ports + 2 x SFP ports + 2 x Combo ports
4 x 10/100/1000 Mbps RJ45 ports
2 x 100/1000 Mbps SFP Ports
2 x 10/100/1000 Combo ports - Full Duplex (RJ45 or SFP)
PROFINET Conformance-Class B
Auto negotiation and autocrossing
Transmission Length: 100m (per segment)
MRP (client and manager)
RSTP
VLANs
DHCP client, DHCP server (pool-based and port-based), DHCP option 82
Configuration Memory
Web-based management, SNMP
Signal LED's: Data receive, link status
Suitable for PROFINET and EtherNet/IP™ networks
Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
Connection Method: Push-in spring connection
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 19.2 V DC....32 V DC
Typical Current Consumption: 270 mA
Signal contact control voltage: 24 V DC (Typical)
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Base Plate Material: Die-cast aluminum, corrosion-resistant
Housing: Stainless steel 1.4301
Width: 128mm
Height: 110mm
Depth: 69mm
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 1035 g
Part Number 1088872
GTIN: 4055626891743
Customs tariff number: 85176200
Country of origin: DE
