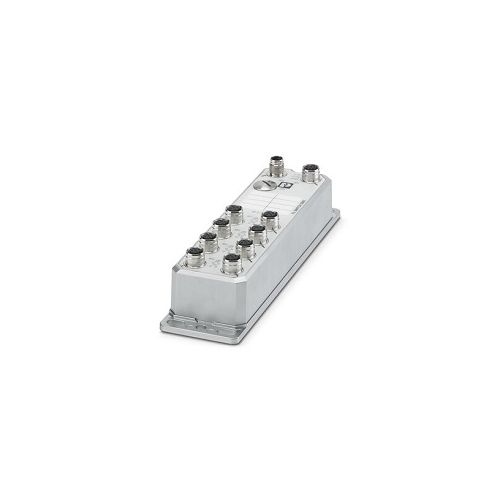

FL SWITCH 2708 PN | 1106610 | Ethernet Switch
Managed switch, Ports: 8 x M12, 10/100/1000 Mbps, autocrossing function, PROFINET Conformance-Class B, Wall Mounting
| Complete Electronics Part No. | 1106610 |
|---|---|
| Manufacturers Part No. | 1106610 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100/1000 M12 ports: | 8 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP65 / 66 / 67 |
Description
Managed Industrial Ethernet Switch
8 x M12 Connectors - X Coded
- Wall Mount
- PROFINET Conformance-Class B
- Transmission speed: 10/100/1000 Mbps
- Transmission length:100 m (per segment)
- Auto Negotiation and Autocrossing
- SNTP (Simple Network Time Protocol)
- Signal LEDs: Data receive, link status
- Supply voltage: 24V DC (redundant)
- Supply voltage range: 9 V DC ...57 V DC
- Connection method: M12 connector (L-coded)
- Degree of protection: IP65, IP66, IP67
- Operating Temperature: -40 °C ... 70 °C
- Width: 60mm
- Height: 226mm
- Depth: 46mm
- Housing Material: Zinc die-cast
- Mounting Type: Wall
- Weight per Piece (excluding packing): 1400 g
- Part Number 1106610
- GTIN: 4055626989679
- Customs Tariff Number: 85176200
- Country of origin: DE
