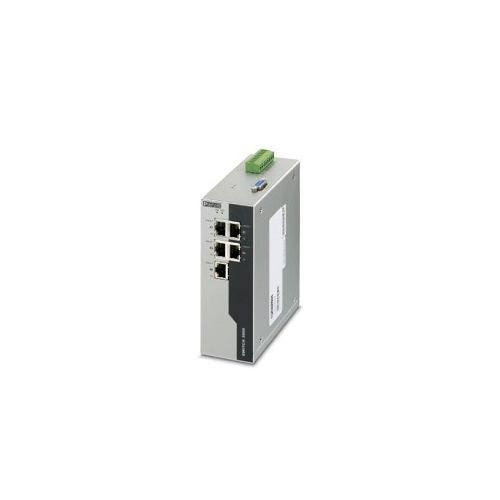

FL SWITCH 3005 | 2891030 | Ethernet Switch
DIN Rail Mount Managed Ethernet switch, 5 x RJ45 10/100 Ports, Security options with cable locking, Auto negotiation and autocrossing
| Complete Electronics Part No. | 2891030 |
|---|---|
| Manufacturers Part No. | 2891030 |
| Phoenix Ethernet Series: | Managed Switch 3000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 5 |
| Total Ethernet Ports: | 5 |
| IP Rating: | IP20 |
Description
Managed Ethernet switch
5 x RJ45 ports 10/100 Mbps
Auto negotiation and autocrossing (RJ45 Interface)
Transmission Length: 100 m
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 12 V DC....48 V DC
Typical Current Consumption: 185 mA (at US = 24 V DC)
Power Supply Connection Method: Pluggable COMBICON screw connections
Degree of protection: IP20
Operating Temperature: -10°C ... 60°C
Width: 54.4mm
Height: 146.4mm
Depth: 125mm
Mounting Type: DIN Rail
Housing: Aluminium
Weight per Piece (excluding packing): 901 g
Part Number 2891030
GTIN: 4046356658362
Customs tariff number: 85176200
Country of origin: TW
