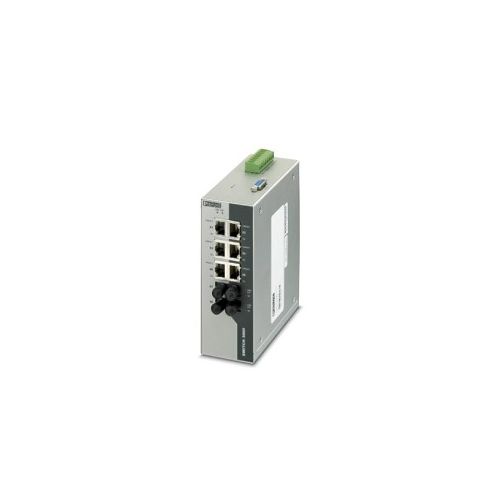

FL SWITCH 3006T-2FX | 2891036 | Ethernet Switch
DIN Rail Mount Managed Ethernet switch, 6 x RJ45 10/100 Ports, 2 x 100 Mbps (Full Duplex) FO SC format Ports Multi Mode
| Complete Electronics Part No. | 2891036 |
|---|---|
| Manufacturers Part No. | 2891036 |
| Phoenix Ethernet Series: | Managed Switch 3000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SC |
| IP Rating: | IP20 |
Description
Din Rail mount managed Ethernet switch
6 x RJ45 ports + 2 STC format fiber optic ports
6 x RJ45 ports 10/100 Mbps
2 x 100 Mbps (Full Duplex) FO SC Ports Multi Mode.
Auto negotiation and autocrossing (RJ45 Interface)
Fiber optic interface: SC
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 12 V DC....48 V DC
Typical Current Consumption: 287 mA (at US = 24 V DC)
Power Supply Connection Method: Pluggable COMBICON screw connections
Degree of protection: IP20
Operating Temperature: -40 °C ... 75 °C
Width: 54.4mm
Height: 146.4mm
Depth: 125mm
Mounting Type: DIN Rail
Housing: Aluminium
Weight per Piece (excluding packing): 960 g
Part Number 2891036
GTIN: 4046356659161
Customs tariff number: 85176200
Country of origin: TW
