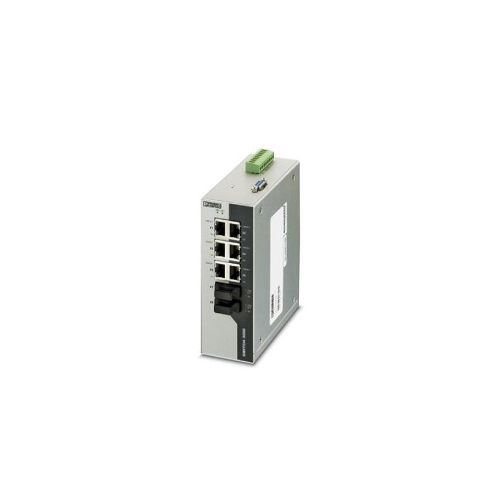

FL SWITCH 3006T-2FX SM | 2891060 | Ethernet Switch
Managed switch, 6 x RJ45, 10/100 Mbps, 2 x SC format ports 100/1000 Mbps, Single Mode, Housing:- Aluminium, DIN Rail Mounting
| Complete Electronics Part No. | 2891060 |
|---|---|
| Manufacturers Part No. | 2891060 |
| Phoenix Ethernet Series: | Managed Switch 3000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SC |
| IP Rating: | IP20 |
Description
Managed Industrial Ethernet Switch
6 x Twisted Pair RJ45 Ports
8 x10/100 Mbps Ports
2 x SC format port 100 Mbps (Full Duplex) Single Mode
Auto Negotiation and Autocrossing
Transmission Length: 100m
Signal LEDs: Data receive, Link status
Supply voltage: 24V DC Redundant
Supply voltage range: 12 V DC ... 48 V DC
Connection Method: Pluggable COMBICON screw connections
Typical current consumption:265 mA
Degree of protection: IP20
Operating Temperature: -40°C ... 75°C
Width: 54.4mm
Height: 146.4mm
Depth: 125mm
Housing Material: Aluminium
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 965 g
Part Number 2891060
GTIN: 4046356764285
Customs tariff number: 85176200
Country of origin: TW
