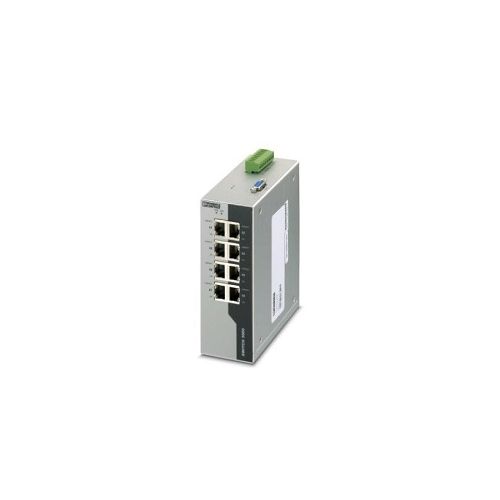

FL SWITCH 3008 | 2891031 | Ethernet Switch
Managed switch, 8 x Twisted Pair (TP) RJ45, 10 /100 Mbps, extended ring redundancy, Housing:- Aluminium
| Complete Electronics Part No. | 2891031 |
|---|---|
| Manufacturers Part No. | 2891031 |
| Phoenix Ethernet Series: | Managed Switch 3000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP20 |
Description
Managed Industrial Ethernet Switch
8 x Twisted Pair RJ45 Ports
- 8 x RJ45 10/100 Mbps
- Auto Negotiation and Autocrossing
- Transmission Length: 100m
- Supply Voltage: 24 V DC (Redundant)
- Supply voltage range: 12 V DC ... 48 V DC
- Power Supply Connection: Pluggable COMBICON screw connections
- Typical current consumption: 206 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: -10°C ... 60°C
- Width: 54.4mm
- Height: 146.4mm
- Depth: 125mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 622 g
- Part Number 2891031
- GTIN: 4046356659123
- Customs tariff number: 85176200
- Country of origin: TW
