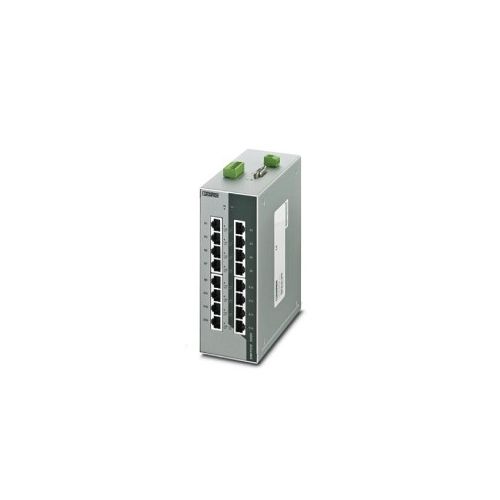

FL SWITCH 3016 | 2891058 | Ethernet Switch
Unmanaged switch, 16 x Twisted Pair (TP) RJ45, 10 /100 Mbps, operating temperature of -10°C ... +60°C, Housing:- Aluminium
| Complete Electronics Part No. | 2891058 |
|---|---|
| Manufacturers Part No. | 2891058 |
| Phoenix Ethernet Series: | Managed Switch 3000 |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 16 |
| Total Ethernet Ports: | 16 |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
16 x Twisted Pair RJ45 Ports
- 16 x RJ45 10/100 Mbps
- Auto Negotiation and Autocrossing
- Transmission Length: 100m
- Supply Voltage: 24 V DC
- Supply voltage range: 12 V DC ... 48 V DC
- Power Supply Connection: Pluggable COMBICON screw connections
- Typical current consumption: 223 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: -10°C ... 60°C
- Width: 66mm
- Height: 173mm
- Depth: 140mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 969 g
- Part Number 2891058
- GTIN: 4046356763165
- Customs tariff number: 85176200
- Country of origin: TW
