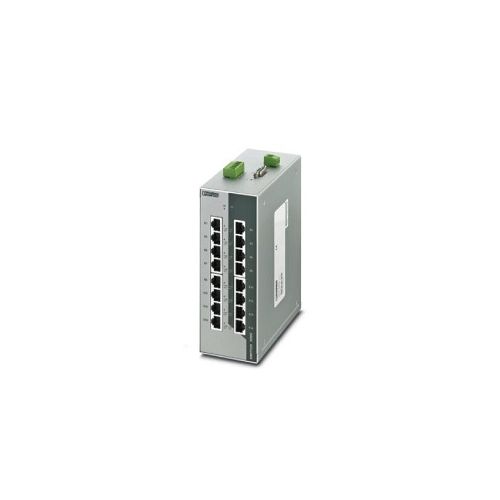

FL SWITCH 3016T | 2891059 | Ethernet Switch
Managed switch, 16 x Twisted Pair (TP) RJ45, 10 /100 Mbps, Auto negotiation and autocrossing Housing:- Aluminium
| Complete Electronics Part No. | 2891059 |
|---|---|
| Manufacturers Part No. | 2891059 |
| Phoenix Ethernet Series: | Managed Switch 3000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 16 |
| Total Ethernet Ports: | 16 |
| IP Rating: | IP20 |
Description
Managed Industrial Ethernet Switch
16 x Twisted Pair RJ45 Ports
16 x RJ45 10/100 Mbps
Configuration memory
Web-based management, SNMP
Auto Negotiation and Autocrossing
Transmission Length: 100m (Per Segment)
Signal LED's: Data receive, link status
Supply voltage: 24V DC (Redundant)
Supply voltage range: 12 V DC ... 48 V DC
Connection Method: Pluggable COMBICON screw connections
Typical current consumption: 261 mA (at US = 24 V DC and 25 °C ambient temperature)
Degree of protection: IP20
Operating Temperature: -40 °C ... 75 °C
Width: 66mm
Height: 173mm
Depth: 140mm
Housing Material: Aluminium
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 1133 g
Part Number 2891059
GTIN: 4046356764278
Customs tariff number: 85176200
Country of origin: TW
