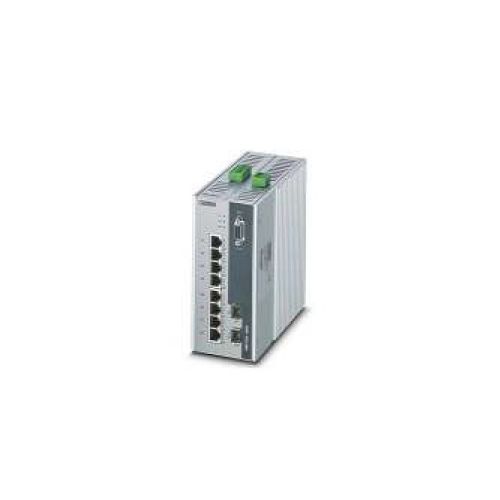

FL SWITCH 4000T-8PoE - 2SFP | 1026923| Ethernet Switch
Managed switch, 8 x RJ45, (PoE) 10/100 Mbps, 2 x SFP ports 100/1000 Mbps, Housing:- Aluminium, DIN Rail Mounting
| Complete Electronics Part No. | 1026923 |
|---|---|
| Manufacturers Part No. | 1026923 |
| Phoenix Ethernet Series: | Managed Switch 4000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 8 |
| Total 100/1000 (FX) Ports: | 2 |
| Total Ethernet Ports: | 10 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description
Managed Industrial Ethernet Switch
8 x Twisted Pair RJ45 Ports (PoE)
- 8 x10/100 Mbps Ports (PoE)
- 2 x SFP port 100/1000Mbps
- Auto Negotiation and Autocrossing
- Signal LEDs: Data receive, Link status, PoE detection Orange LED
- Supply voltage: 55V DC Redundant
- Supply voltage range: 50 V DC ... 57 V DC (> 52 V DC for PoE+ or 60 W output)
- Connection Method: Screw connections
- Typical current consumption:205 mA
- Degree of protection: IP20
- Operating Temperature: -40°C ... 75°C
- Width: 75mm
- Height: 170mm
- Depth: 152mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 1,612 g
- Part Number 1026923
- GTIN: 4055626519555
- Customs tariff number: 85176200
- Country of origin: TW
