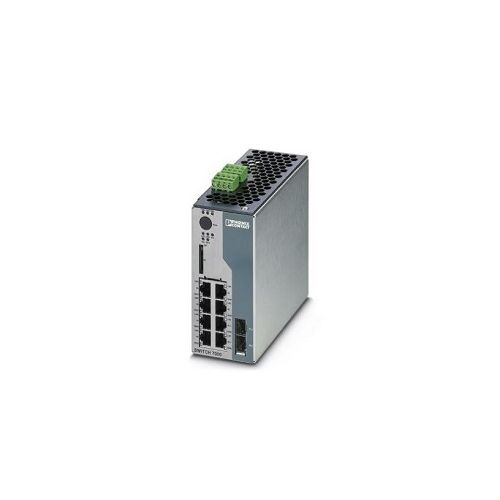

FL SWITCH 7004-4GC-EIP | 2701553 | Ethernet Switch
DIN Rail Mount managed Ethernet switch, 4 x RJ45 10/100 Mbps Ports, 4 x Combo Ports 10/100/1000 Mbps, ***No longer in product range***
| Complete Electronics Part No. | 2701553 |
|---|---|
| Manufacturers Part No. | 2701553 |
| Phoenix Ethernet Series: | Managed Switch 7000 |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 4 |
| Number of Combo Ports: | 4 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description
Din Rail mount managed Ethernet switch
4 x RJ45 ports + 4 x Combo ports
***No longer in product range***
PROFINET Conformance - Class A, EtherNet/IP™
4 x RJ45 ports 10/100 Mbps
4 x RJ45 or SFP 10/100/1000 Mbps
Auto negotiation and autocrossing (RJ45 Interface)
Transmission Length: 100m (per segment RJ45)
RSTP with fast switchover
Device Level Ring (DLR)
VLANs
Common Industrial Protocol (CIP)
DHCP client, DHCP server (pool-based and port-based), DHCP option 82
Web-based management, SNMP
PROFINET Conformance-Class A
Signal LED's: Data Receive, Link status
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 12 V DC....58 V DC
Signal Control Voltage: Typically 24V DC
Typical Current Consumption: 520 mA (at US = 24 V DC and 25°C ambient temperature)
Power Supply Connection: via COMBICON, max. conductor cross section 2.5 mm²
Screw Connection
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Width: 60mm
Height: 130mm
Depth: 135.5mm
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 1010 g
Part Number 2701553
GTIN: 4046356766784
Customs tariff number: 85176200
Country of origin: DE
