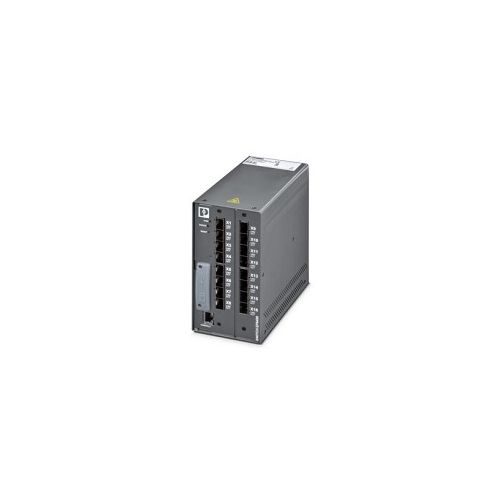

FL SWITCH EP6400-16GSFP-LV | 1574601 | Ethernet Switch

Managed switch with sixteen SFP ports at 100/1000 Mbps and operating temperature of -40 …+85°C, 24 V DC (Nom.) power supply

More Information
Complete Electronics Part No. 1574601
Manufacturers Part No. 1574601
Phoenix Ethernet Series: Managed Switch EP64
Managed / Unmanaged: Managed
Total 100/1000 (FX) Ports: 16
Total Ethernet Ports: 16
FX (Optical) Connector Type: SFP
FX (Optical) Cable Type: Multimode or Single Mode
IP Rating: IP20
Description

FL SWITCH EP6400-16GSFP-LV

Managed  Ethernet switch

Ethernet (RJ45)

N/A


Ethernet (Optical)

Connection: SFP port x 16 (100/1000 Mbps)
Transmission medium: Depending on the SFP module


Functions

Managed Switch
Layer 2 and Layer 3 functions
IEEE 1588 v2 precision timing support
Support for Access Control Lists (ACL)
Supply Voltage: 24 V DC (Redundant DC power supplies are load sharing)
Supply Voltage Range: 10 V DC ... 36 V DC
Alarm relay output: 24 V DC, 1 A maximum
Connection method: Screw connection
Typical current consumption:
Degree of protection: IP20
Operating Temperature: -40°C ... 85°C (Type tested to 85 °C for 16 hours)
Approvals: CE-compliant


Dimensions

Width: 82.7mm
Height: 188.39mm
Depth: 197.12mm
Housing Material:
Mounting Type:


Commercial data

Weight per Piece (excluding packing): 2,024 g
Part Number: 1574601
GTIN: 4067923063853
Customs tariff number: 85176200
Minimum Order Quantity: 1 pc.
Country of Origin: CA
