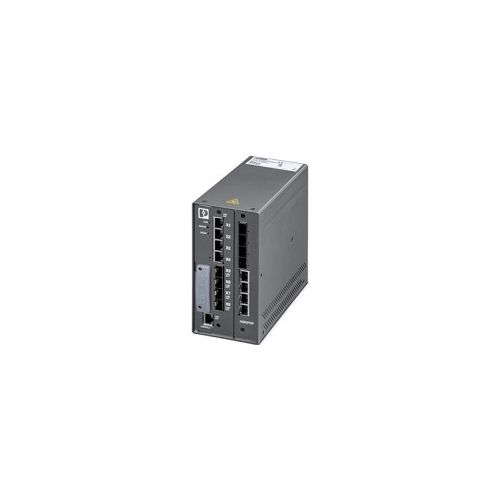

FL SWITCH EP6404-4GSFP-RED-HV | 1524692 | Ethernet Switch
Managed switch with four RJ45 ports, four SFP ports, four gigabit HSR/PRP combo ports, operating temperature of -40 … +85°C
| Complete Electronics Part No. | 1524692 |
|---|---|
| Manufacturers Part No. | 1524692 |
| Phoenix Ethernet Series: | Managed Switch EP64 |
| Managed / Unmanaged: | Managed |
| Total 100/1000 (FX) Ports: | 8 |
| Total 10/100/1000 (RJ45) Ports: | 4 |
| Number of Combo Ports: | 4 |
| Total Ethernet Ports: | 12 |
| FX (Optical) Connector Type: | SFP |
| FX (Optical) Cable Type: | Multimode or Single Mode |
| IP Rating: | IP20 |
Description
FL SWITCH EP6404-4GSFP-RED-HV
Managed Ethernet switch
Ethernet (RJ45)
Transmission speed: 10/100/1000 Mbps
RJ45 jack x 4
RJ45 jack x 4 (HSR/PRP Combo Port)
Transmission length: 100 m (per segment)
Auto negotiation and autocrossing
Ethernet (Optical)
Connection: SFP port x 4 (100/1000 Mbps)
Connection: HSR/PRP combo ports x 4, 10/100/1000 Mbps RJ45, 100/1000 Mbps SFP
connection
connection
Transmission medium: Depending on the SFP module
Functions
Managed Switch
Alarm relay output: 24 V DC, 1 A maximum
Supply voltage: 100 V AC/DC ... 240 V AC/DC
Power supply connection: Screw
Typical current consumption:
Degree of protection: IP20
Operating Temperature: -40°C ... 85°C
Approvals: CE-compliant
Dimensions
Width: 82.7mm
Height: 188.39mm
Depth: 197.12mm
Housing Material:
Mounting Type:
Commercial data
Weight per Piece (excluding packing): 1,958 g
Part Number: 1524692
GTIN: 4063151991166
Customs tariff number: 85176200
Minimum Order Quantity: 1
Country of Origin: CA
